MiniRobotLanguage (MRL)
ARR.Sort FP
Sort a Floating-Point Array with Tag-Along Array
Sort a specified array of floating-point numbers in ascending or descending order, with a tag-along array sorted in parallel.
Intention
The ARR.Sort FP command sorts a specified array as a floating-point array in ascending (default) or descending order, with a tag-along array sorted in parallel to maintain correspondence between elements. The tag-along array is automatically initialized with string indices ("0", "1", ...) if it is not dimensioned or has a mismatched size; otherwise, its existing content is preserved and sorted. The sorting behavior can be customized using an optional options string specifying direction (A or D). A status code (1 for success, 0 for failure) is returned on the Top of Stack (TOS). All array elements are stored as strings, with floating-point values in MKE$ format for numerical sorting.
Can only be used for FP arrays (MKE$ format)! For string arrays, use ARR.Sort. For integer arrays, use ARR.Sort INT.
•Array Restriction: The sort array and tag-along array must be different (0-32).
•Sort Options: Supports ascending (A) or descending (D) order for numerical sorting.
•Return Value: A status code (1 for success, 0 for failure) is pushed to the TOS.
•Tag-Along Array: The tag-along array is initialized with string indices if not dimensioned or mismatched; otherwise, its content is preserved and sorted in sync with the sort array.
Schematic (Array Sorting)
Sort Array: [3.14, 1.23, 2.718] (in MKE$ format)
Tag-Along Array: ["0", "1", "2"] (auto-initialized if not set)
Command: ARR.Sort FP|0|1|A
Result Sort Array: [1.23, 2.718, 3.14] (in MKE$ format)
Result Tag-Along Array: ["1", "2", "0"]
TOS: 1 (success)
Syntax
ARR.Sort FP|P1|P2[|P3]
Parameter Explanation
•P1 - Sort Array Number: The array number (0-32) to sort, containing floating-point numbers in MKE$ format.
•P2 - Tag-Along Array Number: The array number (0-32) for the tag-along array (must be different from P1).
•P3 - Options (Optional): A string containing A (ascending, default) or D (descending). If omitted, defaults to ascending.
Examples
'***********************************
' Example 1: Sort floating-point numbers in ascending order
'***********************************
ARR.Clm|0
ARR.Clm|1
ARR.Set FP Array|0|0|3.14
ARR.Set FP Array|0|1|1.23
ARR.Set FP Array|0|2|2.718
ARR.Sort FP|0|1|A
' Array 0 contains: [1.23, 2.718, 3.14] (in MKE$ format)
' Array 1 contains: ["1", "2", "0"]
ARR.Get FP Array|0|0|$$RET
MBX.$$RET
ENR.
'***********************************
' Example 2: Sort floating-point numbers in descending order with tag-along
'***********************************
ARR.Clm|0
ARR.Clm|1
ARR.Set FP Array|0|0|3.14
ARR.Set FP Array|0|1|1.23
ARR.Set FP Array|0|2|2.718
ARR.Set|1|0|a
ARR.Set|1|1|b
ARR.Set|1|2|c
ARR.Sort FP|0|1|D
' Array 0 contains: [3.14, 2.718, 1.23] (in MKE$ format)
' Array 1 contains: ["0", "2", "1"]
ARR.Get|1|0|$$RET
MBX.$$RET
ENR.
'***********************************
' Example 3: Sort floating-point numbers with tag-along array initialization
'***********************************
ARR.Clm|0
ARR.Set FP Array|0|0|3.14
ARR.Set FP Array|0|1|1.23
ARR.Set FP Array|0|2|2.718
ARR.Sort FP|0|1
' Array 0 contains: [1.23, 2.718, 3.14] (in MKE$ format)
' Array 1 contains: ["1", "2", "0"]
ARR.Get|1|0|$$RET
MBX.$$RET
ENR.
'============================================================

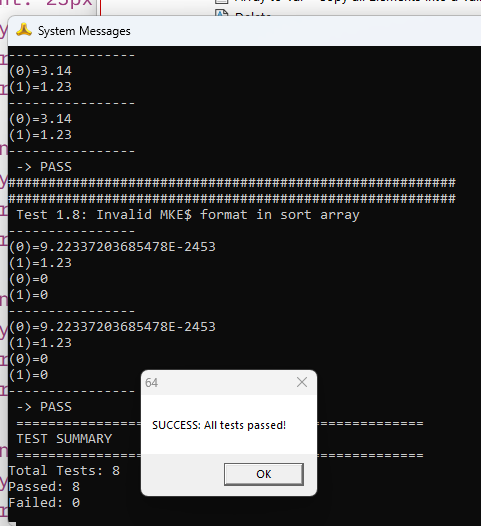

' TEST SCRIPT for ARR.Sort FP
' Purpose: Verify ARR.Sort FP functionality with JIV for automated checks.
' Tests ascending sort, descending sort, tag-along preservation, tag-along
' initialization, different array numbers, and edge cases for MKE$ formatted arrays.
'============================================================
' Initialize counters
$$PAS=0
$$FAI=0
STS.CLEAR
PRT. ===================================================
PRT. Test 1.1: Sort floating-point in ascending order (Array 0, Tag Array 1)
STS.CLEAR
ARR.Clm|0
ARR.Clm|1
ARR.Set FP Array|0|0|3.14
ARR.Set FP Array|0|1|1.23
ARR.Set FP Array|0|2|2.718
PRT.----------------
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Sort FP|0|1|A
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Get FP Array|0|0|$$RET
$$EXP=1.23
VBT.$$RET
VBT.$$EXP
JIV.$$RET!$$EXP|Lab_Error1
PRT. -> PASS
VIC.$$PAS
JMP.Lab_Next1
:Lab_Error1
GSB.Test
'-----------------------------------------------------------
:Lab_Next1
PRT.########################################################
PRT.########################################################
PRT. Test 1.2: Sort floating-point in descending order with tag-along preservation
STS.CLEAR
ARR.Clm|0
ARR.Clm|1
ARR.Set FP Array|0|0|3.14
ARR.Set FP Array|0|1|1.23
ARR.Set FP Array|0|2|2.718
ARR.Set|1|0|a
ARR.Set|1|1|b
ARR.Set|1|2|c
PRT.----------------
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Sort FP|0|1|D
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Get|1|0|$$RET
$$EXP=a
VBT.$$RET
VBT.$$EXP
JIV.$$RET!$$EXP|Lab_Error2
PRT. -> PASS
VIC.$$PAS
JMP.Lab_Next2
:Lab_Error2
GSB.Test
'-----------------------------------------------------------
:Lab_Next2
PRT.########################################################
PRT.########################################################
PRT. Test 1.3: Sort floating-point with tag-along initialization
STS.CLEAR
ARR.Clm|0
ARR.Clm|1
ARR.Set FP Array|0|0|3.14
ARR.Set FP Array|0|1|1.23
ARR.Set FP Array|0|2|2.718
PRT.----------------
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Sort FP|0|1
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Get|1|0|$$RET
$$EXP=1
VBT.$$RET
VBT.$$EXP
JIV.$$RET!$$EXP|Lab_Error3
PRT. -> PASS
VIC.$$PAS
JMP.Lab_Next3
:Lab_Error3
GSB.Test
'-----------------------------------------------------------
:Lab_Next3
PRT.########################################################
PRT.########################################################
PRT. Test 1.4: Sort using different array numbers (Array 10, Tag Array 20)
STS.CLEAR
ARR.Clm|10
ARR.Clm|20
ARR.Set FP Array|10|0|5.67
ARR.Set FP Array|10|1|2.34
ARR.Set FP Array|10|2|4.56
ARR.Set|20|0|x
ARR.Set|20|1|y
ARR.Set|20|2|z
PRT.----------------
ARR.ShowFP|10
ARR.ShowFP|20
PRT.----------------
ARR.Sort FP|10|20|A
ARR.ShowFP|10
ARR.ShowFP|20
PRT.----------------
ARR.Get FP Array|10|0|$$RET
$$EXP=2.34
VBT.$$RET
VBT.$$EXP
JIV.$$RET!$$EXP|Lab_Error4
PRT. -> PASS
VIC.$$PAS
JMP.Lab_Next4
:Lab_Error4
GSB.Test
'-----------------------------------------------------------
:Lab_Next4
PRT.########################################################
PRT.########################################################
PRT. Test 1.5: Empty array handling
STS.CLEAR
ARR.Clm|0
ARR.Clm|1
PRT.----------------
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Sort FP|0|1|A
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Get|0|0|$$RET
$$EXP=
VBT.$$RET
VBT.$$EXP
JIV.$$RET!$$EXP|Lab_Error5
PRT. -> PASS
VIC.$$PAS
JMP.Lab_Next5
:Lab_Error5
GSB.Test
'-----------------------------------------------------------
:Lab_Next5
PRT.########################################################
PRT.########################################################
PRT. Test 1.6: Invalid array number (sortArrayNum > 32)
STS.CLEAR
ARR.Clm|0
ARR.Clm|1
ARR.Set FP Array|0|0|3.14
ARR.Set FP Array|0|1|1.23
PRT.----------------
ARR.ShowFP|0
PRT.----------------
ARR.Sort FP|33|1|A
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Get FP Array|0|0|$$RET
$$EXP=3.14
VBT.$$RET
VBT.$$EXP
JIV.$$RET!$$EXP|Lab_Error6
PRT. -> PASS
VIC.$$PAS
JMP.Lab_Next6
:Lab_Error6
GSB.Test
'-----------------------------------------------------------
:Lab_Next6
PRT.########################################################
PRT.########################################################
PRT. Test 1.7: Same array number for sort and tag-along
STS.CLEAR
ARR.Clm|0
ARR.Set FP Array|0|0|3.14
ARR.Set FP Array|0|1|1.23
PRT.----------------
ARR.ShowFP|0
PRT.----------------
ARR.Sort FP|0|0|A
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Get FP Array|0|0|$$RET
$$EXP=3.14
VBT.$$RET
VBT.$$EXP
JIV.$$RET!$$EXP|Lab_Error7
PRT. -> PASS
VIC.$$PAS
JMP.Lab_Next7
:Lab_Error7
GSB.Test
'-----------------------------------------------------------
:Lab_Next7
PRT.########################################################
PRT.########################################################
PRT. Test 1.8: Invalid MKE$ format in sort array
STS.CLEAR
ARR.Clm|0
ARR.Clm|1
ARR.Set|0|0|invalid ' Not MKE$ format
ARR.Set FP Array|0|1|1.23
ARR.Set|1|0|a
ARR.Set|1|1|b
PRT.----------------
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Sort FP|0|1|A
ARR.ShowFP|0
ARR.ShowFP|1
PRT.----------------
ARR.Get|1|0|$$RET
$$EXP=a
VBT.$$RET
VBT.$$EXP
JIV.$$RET!$$EXP|Lab_Error8
PRT. -> PASS
VIC.$$PAS
JMP.Lab_Next8
:Lab_Error8
GSB.Test
'-----------------------------------------------------------
:Lab_Next8
PRT. ===================================================
PRT. TEST SUMMARY
PRT. ===================================================
CAL.$$TOT=$$PAS+$$FAI
$$MSG=Total Tests: $$TOT
PRT.$$MSG
$$MSG=Passed: $$PAS
PRT.$$MSG
$$MSG=Failed: $$FAI
PRT.$$MSG
JIV.$$FAI=0|Lab_Success
$$MSG=FAILURE: $$FAI of $$TOT tests failed.
MBX.$$MSG|Test Result|16
JMP.Lab_End
:Lab_Success
MBX.SUCCESS: All tests passed!|Test Result|64
:Lab_End
ENR.
:Test
$$MSG= -> FAIL - Result: $$RET (exp: $$EXP)
PRT.$$MSG
VIC.$$FAI
RET.
Remarks
- The command sorts a specified array of floating-point numbers in MKE$ format, with a tag-along array sorted in parallel. The tag-along array is initialized with string indices if not dimensioned or mismatched; otherwise, its content is preserved.
- Use ARR.Swap to move another array to a desired position for sorting.
- Options are case-insensitive (e.g., "D" or "d").
- The TOS returns 1 for success, 0 for failure (e.g., invalid array number, invalid MKE$ format).
- Empty arrays return success (TOS = 1) with no changes.
- Invalid MKE$ strings in the sort array are treated as 0 during sorting.
Limitations
- Array numbers are limited to 0–32, and the sort and tag-along arrays must be different.
- Requires 2 or 3 parameters; fewer or more result in no operation.
- No support for multidimensional arrays.
