MiniRobotLanguage (MRL)
CLB.Get Format Name
Returns the name from the clipboard format of the specified value.
Return name of a Clipboard Format.
Intention
This command will return the name of the below listed 18 clipboard formats.
Example, if P1 = 6, the command will return "CF_TIFF".
Constant Name |
Value |
Comment |
|---|---|---|
CF_TEXT |
1 |
Text format |
CF_BITMAP |
2 |
Bitmap format |
CF_METAFILEPICT |
3 |
Metafile picture format |
CF_SYLK |
4 |
Microsoft Symbolic Link format |
CF_DIF |
5 |
Software Arts' Data Interchange Format |
CF_TIFF |
6 |
Tagged Image File Format |
CF_OEMTEXT |
7 |
Text format containing characters in the OEM character set |
CF_DIB |
8 |
Device Independent Bitmap |
CF_PALETTE |
9 |
Color palette format |
CF_PENDATA |
10 |
Pen data format |
CF_RIFF |
11 |
Resource Interchange File Format |
CF_WAVE |
12 |
Waveform audio format |
CF_UNICODETEXT |
13 |
Unicode text format |
CF_ENHMETAFILE |
14 |
Enhanced metafile format |
CF_HDROP |
15 |
Handle to a list of file names |
CF_LOCALE |
16 |
Locale identifier |
CF_DIBV5 |
17 |
Version 5 device independent bitmap (DIB) |
CF_MAX |
18 |
Maximum clipboard format value used in the enumeration |
Syntax
CLB.Get Format Name|P1[|P2]
Parameter Explanation
P1 - Variable/Value of the Format Name to be returned
P2 - (optional) Variable for the result, if omitted, result goes to TOS.

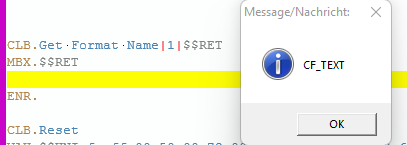

Example
'***********************************
' CLB.-Sample
'***********************************
CLB.Get Format Name|6|$$RET
PRT.$$RET
CLB.Get Format Value|CF_Bitmap|$$RET
PRT.$$RET
MBX.!
ENR.
Remarks
-
Limitations:
-
See also:
•
