MiniRobotLanguage (MRL)
SCW. Command
Seach Child Window
Intention
This command localizes a specified Child-Window (Control, Button etc.) within a previous localized Top-Window (Application-Window).
To understand this command, be sure to read the chapters:
1.8. Selecting the Application (Topwindow)
and
first.
It will then sets the Mouse-Target Point into the window-center.
SCW. has a lot of features, which are controlled using the 1.4. The Prototype Parameter System .Be sure you have read and understand that chapter before trying to understand SCW.
Unless using the "T"-Option, the SCW.-command needs a Top-Window being localized first. Therefore please read the section 1.8. Selecting the Application (Topwindow) carefully.
The Command has a "Rollback" Feature, when the Child-Window is not found in few Seconds. It jumps back to the STW. (Search Top-Window) and tries to get a new Top-Window, which possibly has the wanted button or control.
This will continue, until its time has run out.

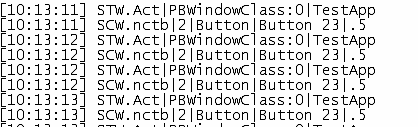

If you use the DBM.1 -command, you can see these "Rollback-Jumps" in the Debugging-Console. See the example below.
DBM.1
STW.Act|PBWindowClass:0|TestApp
' This button/childwindow does not exist
SCW.nctb|2|Button|Button 23|.5
MLE.
You can control this Feature using the "b" - Backjump-Time Flag.
Syntax
SCW.[Prototypes|][Parameters|]
Parameter Explanation
Parameter
a - (np) "all" - search all windos, includes
invisible and disabled windows.
b - (p) "backjump"-flag, time in seconds, 0 disables the jump
c - (p) window-class
d - (p) window-depth
e - (np) enabled, window must be enabled
f - (np) disabled, window must be disabled
g - (p) Goto on found
h - (p) handle. Immediately locate the window with given handle.
All other prototypes will be ignored.
i - (p) window-id
j - (p) WaitForInputIdle (Value)
k - (np) WaitForInputIdle (no Value), use value
from last Call/default-value
n - (p) Fensternumber in der Ebene ("WR->SWC")
o - (p) on not found goto (Label)
p - (p) Process-ID (PID)
q - (p) Thread-ID (TID)
r - (p) result number ("WR-SPC-Count")
s - (np) internal reversing at child windows search
t - (p) text
u - (np) invisible, window must be invisible
v - (np) visible, window must be visible
w - (p) total waiting-time in Seconds, fractions (0.5)
are possible, zero is possible.
E - (np) Add Window to Exclude List after localization
I - (p) p = handle. Locate window and remove window
from Exclude list.
K - (n) Immediately clear Exclude-List before specified search
Q - (n) use previous Prototypes
S - (n) Search only next Level (SWC-Option)
T - (n) Search desktopwide, ignore localized Top-Window
V - (p/Label) Gosub on not found
W - (p/Label) Gosub on found
X - (n) Run without Error on not found
Explanation:
(np) -> only prototype, no additional parameter required
(p) -> prototype requires additional parameter
(NUM/VAR) - window handle/variable
(p/Label) - Label-Parameter required, can also be a
variable that contains the label
P2 - Parameters, separated by | according to the prototypes
Example
STW.Act|PBWindowClass:0|TestApp
SCW.nctE|2|Button|Button 2
' Coordinates relative to left, upper corner of button
MPO.o|42,22
MLE.
Remarks
When using SCW. to check if a child-window is available or not, it makes sense that you use the "b"-flag with a value of "0" to disable the backjump.
Limitations:
-
See also:
• 1.4. The Prototype Parameter System
• 1.8. Selecting the Application (Topwindow)
