MiniRobotLanguage (MRL)
SVL. Command
Set the Soundcard/Mixer Volume (OS independent)
Intention
Get/Set the Soundcard/Mixer Master-Volume.
Get/Set the Mute-State of the Master- Volume.
Modes of operation:
1. Mute Master Volume
SVL.Set Mute|1

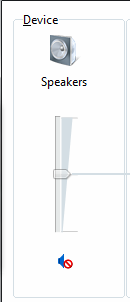

These two pictures show the result under XP (left picture) and Windows 7/x64 (right picture).
You will also get an OK on TOS. In case the operation would fail, you will get an error-message on TOS instead, and you will get the timeout-flag set, which is cleared otherwise.

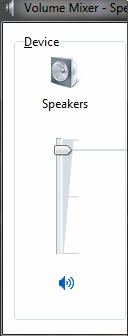

Now lets go the opposite way and UnMute the sytem.
SVL.Set Mute|0
And voila' the Sound is back!
2. You can find out, if a system is muted or not.
SVL.Get Mute|$$RES
DBP.$$RES
If you get a "1" back, the system is muted, otherwise you'll get a "0" in $$RES.
And that means that the system is not muted, sound is ON.
3. You can get the Master Volume.
' Get the Master Volume
SVL.get master volume|$$RES
DBP.$$RES
No matter, if its XP or Windows 7, the result is always a number in the range
from 0 to 100. About these numbers, 100 is always the maximum volume, and
0 is total silence.
4. Set/change the Master Volume:
' Set Master Volume to 95 (Range is 0 to 100)
SVL.Set Master Volume|95
as always you will get a "OK" on the TOS if the operation succeeds.
So far, all commands are perfectly transparent between different windows OS.
The following commands may show different results between different OS.
5. Find out how many channels we can control:
SVL.get channel count|$$RES
DBP.$$RES
ENR.
The result may be different between XP and higher Windows versions.
For Windows XP, I get the following Results. This may be slightly different on your actual system, depending on the availability of such Sound-Hardware.
Channel 1: Master Volume
Channel 2: Wave Volume
Channel 3: CD Volume
Channel 4: SW Synthesizer
Channel 5: Front Speaker
In Vista/Windows 7 and higher you should actually avoid these functions, as the result is unpredictable.
6. Get Channel Volume
' Get Volume from Channel No. 2
SVL.Get Channel Volume|2|$$RES
DBP.$$RES
7. Set Channel Volume
' Set Volume from Channel No. 2
SVL.Set Channel Volume|2|55
DBP.$$000
8. Get Channel Mute
SVL.Get Channel Mute|2|$$RES
DBP.$$RES
9. Set Channel Mute
SVL.Set Channel volume|2|1
DBP.$$RES
"1" will Mute the Sound-Channel, while "0" will UnMute the Sound-Channel.
Syntax
SVL.P1|P2[|P3][|P4]
Parameter Explanation
P1 - Subcommand - choose any of the following Subcommands. This will specify what to do:
"gm","get mute" - use P2 for the Result (Variable)
"sm","set mute" - use P2 for the Value (1 - Mute / 0 - UnMute)
"gmv","get master volume" - use P2 for the Result (Variable)
"smv","set master volume" - use P2 for the Volume Value
"gc","get channel count" - use P2 for the Return Value (Variable)
' Avoid the following Subcommands under Vista and higher OS.
----------------------------------------------------------
"gcv","get channel volume" - use P2 for the channel number and
P3 for the Return Value (Variable)
"scv","set channel volume" - use P2 for the channel number and
P3 for the Volume Value.
"gcm","get channel mute" - use P2 for the channel number and
P3 for the Return Value (Variable)
"scm","set channel mute" - use P2 for the channel number and
P3 for the Mute State (1 - Mute / 0 - UnMute)
----------------------------------------------------------
P2 - (optional) - additional Parameter, depending on the used Subcommand.
P3 - (optional) - additional Parameter, depending on the used Subcommand.
Example
'***********************************
' Mute Volume-Sample
'***********************************
' Mute the PC
SVL.Set Mute|1
' UnMute the PC
SVL.Set Mute|0
END.
Remarks
The major functions like "Mute/UnMute", "Set Master Volume" etc. are expected to work transparently on any windows OS. From Windows 2000 to Windows 8. If the operation succeeds, you will find an "OK" on TOS. Otherwise an error message.
Limitations:
See the comments about which functions to avoid, if using an Vista or higher windows version.
