MiniRobotLanguage (MRL)
TXT.flw
TXT.Find_Line_with
Search a Text in the TXT.-internal Buffer and return Line-Number and Byte-Position where it was found.
Intention
This is the simple search, it will just return the most needed results.
This command is used to get the Line-Number and Byte-Positions of a Search-String,
that was found in the Text that is in the Internal TXT-Buffer, into Variables.
As slightly faster Alternative to TXT.flw, this command will return all needed Information to replace the text or work with it in any way.
$$SEA=SWP.
$$LAB=0
TXT.flw|$$SEA|0|$$RES|$$LAB
DMP.6
MBX.$$RES-$$LAB
ENR.
If you use the command without Output-Variables, the result will be on the stack in reverse order.
TXT.flw|$$SEA

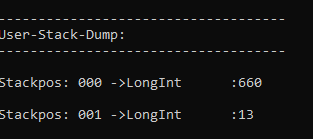

What you see here is:
TOS: Byte-Position of found Text in whole Text
TOS+1: Line-Number where the Text was found
Syntax
TXT.flw|P1[|P2][|P3][|P4]
TXT.Find_Line_with|P1[|P2][|P3][|P4]
Parameter Explanation
P1 - (Input) Variable with String to search for.
P2 - (numeric) Variable will contain a number or 0, this the Starting-Line for the search. The search will at the first byte of the Line.
If this is 0 or 1, the complete loaded Textfile will be searched.
P3 - (Output) Variable will contain the Line-Number of the Line that contains the Search String.
If omitted, the result is placed on TOS.
P4 - (Output) Variable will contain the Byte-Position of the fist-Byte of the Search string in the Text.
If omitted, the result is placed on TOS.
Example
'*****************************************************
' EXAMPLE 1:
'*****************************************************
VAR.$$LAA=?path\..\Pics\Test.txt
TXT.ltf|$$LAA|$$RES
VAN.$$LAC=0
$$SEA=SWP.
$$LAB=0
TXT.flw|$$SEA|0|$$RES|$$LAB
JIV.$$RES!13|Lab_failed
JIV.$$LAB!660|Lab_failed
ENR.
Remarks
-
Limitations:
-
See also:
• IEF. / NEF. - If - exist - File
