MiniRobotLanguage (MRL)
ARR.Get Array
Retrieves the value of a specific element in a specified array as String
Intention
The ARR.Get Array command is designed to retrieve the value of a specific element in a specified array.
This is useful for accessing stored data within an array.
Element Retrieval: The command retrieves the value of the element at the specified index (P2) in the specified array (P1).
Data Types: The value retrieved can be a string or a binary string.
Result Placement: If P3 is omitted, the value of the element is placed on the TOS.
Auto Stop: If you specify an Index that has not been set with an Element, the result will be "" (empty)
Syntax
ARR.Get Array|P1|P2[|P3]
ARR.Get|P1|P2[|P3]
Parameter Explanation
•P1 - Array Number: Specifies the array number, which can range from 0 to 32. This is somehow the "Name" of the Array, yet it can be used as an second Index.
•P2 - Array Index: Specifies the index of the element within the array that you want to retrieve.
•P3 - Output Variable (Optional): Specifies the variable that will receive the value of the element at the given index. If omitted, the result is placed on the Top Of Stack (TOS).
Speed in Ticks:

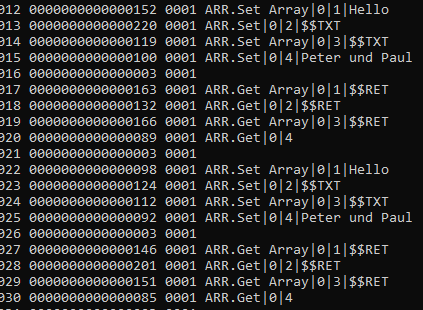

Example
'******************************************
' ARR.Get Array. - Sample
'******************************************
'
ARR.Get Array|5|10|$$RES
' Retrieves the 10th element of Array "5" and stores it in $$RES
END.
Remarks
-
Limitations:
-
See also:
• VAR. - Variable Set Value/Clear
• VAV. - Variables with Variables
• VBA. - Variable Binary Append
• CAL. - mathematical CALculation
See also:
•SDO.Arr----Small-Introduction-To-A
•Unpack-Array-from-File_Delimiter
•Unpack-Array-from-Var_Delimiiter
