Line Points - Button



This Button is possibly the most important Button.

It can re-order Trackpoints on a L9ine between the two selected Points.



Let's see an Example.



We are in this Zoom-Level:   clip0441

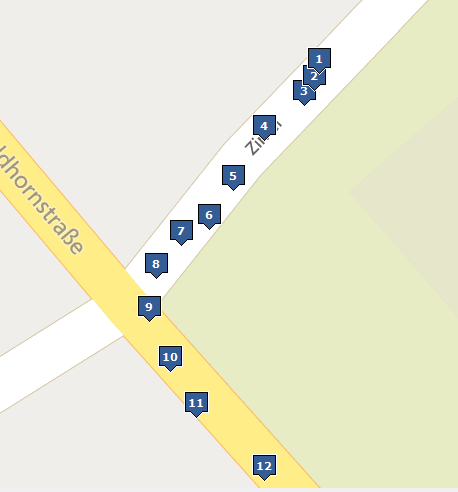

Situation in the RAW GPX-File is this:



clip0442



In the first step i will move Trackpoint 9 into the Center of the roads.

For this i will select TP 9 and then Move it using the H/V Buttons.



clip0443

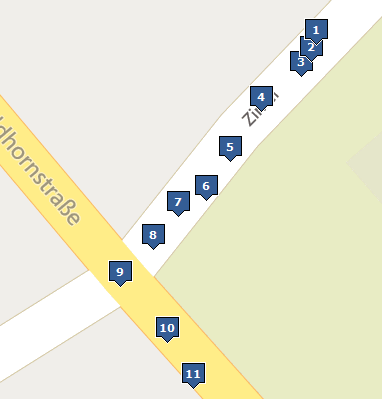

Now Situation looks like this:

clip0444



Now I can use the "Line Points" Button, to move all Points between Trackpoint 1 and Trackpoint 9 on a Line.

For this i will select these two Trackpoints that mark the Start and End of the Line.

All Points between will be moved in a 90 Degree Angle towards this Line.

These Points are selected.



clip0445



I press this Button:

clip0446

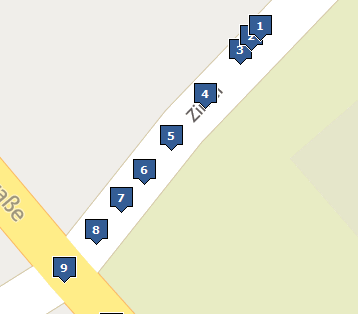

Here we have the result. All Points between 1 and 9 are now on the Line.



clip0447

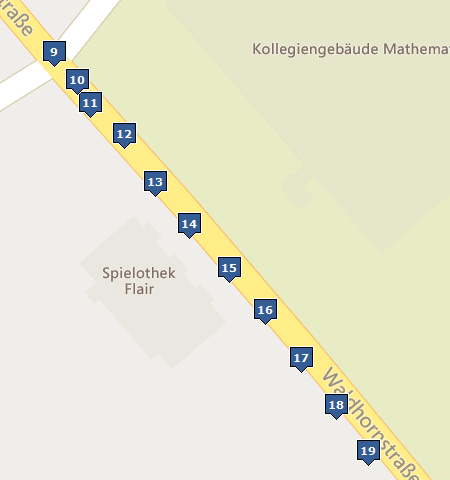

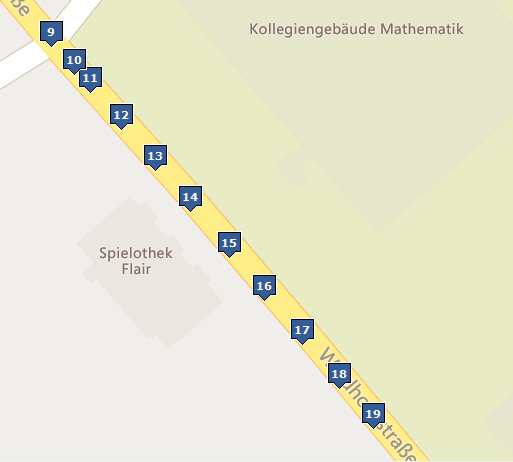

Here we have another example.



clip0448clip0449
