The hexadecimal colours and the RGB colours use amounts of Red Green and Blue to describe colours.
This is a nice analogue to how the pixels in the screen are lighting up.
On the other side it makes picking a colour not very human friendly.
A human way to think of colour asks questions like:
Is it light or dark?
What colour is it?
Is it vibrantly coloured?
E.g. Dark Vibrant Red or Light Pale Pink
There is a way of defining colours based on these propertiess.
This is the hLS - System. It helps you, adjust a colour lighter or darker or more colourful.
Or more red or more blue.
To convert your colors into our HLS-Format you can also use:
The values at "WinHSL 240" are our values from the SPR.
You can find a nice HLS-Colorpicker here:
or here
http://www.workwithcolor.com/hsl-color-picker-01.htm
but you will need to convert the values to WinHLS240 using the Converter here.
HLS is another Description for Color-Information.
It contains the 3 Components: H,L and S.
0-239 Hue is wavelength color.
0-240 Luminosity (brightness, brilliance) is black 0(0%) to white240(100%).
0-240 Saturation is relative bandwidth amount of grey in a color. 0(0%) to 240(100%)
as you can see, the Range from HLS is not exactly the same like it was RGB.
Due to the limited Resolution of WinHLS (Goes up to 239/240 while RGB goes up to 255)

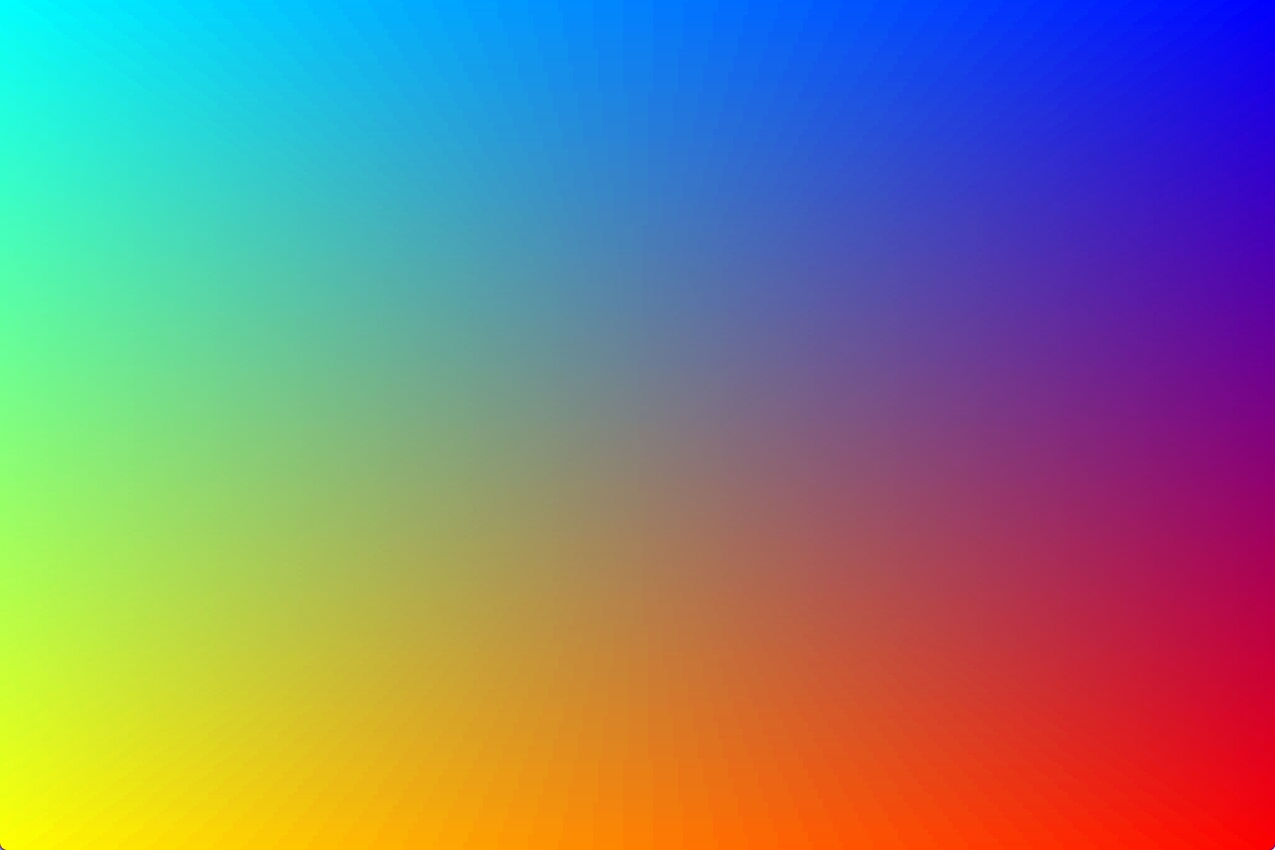

a conversion "back and forth" will look like in the picture below and has some "stairs".
' Depending on your Computer this Script may run for several seconds.
'
CAL.$$XSZ=10200/8
CAL.$$YSZ=6800/8
ANA.New|0|$$XSZ|$$YSZ
ANA.vgradient|0|&HFF00FF|&H000000
ANA.New|1|$$XSZ|$$YSZ
ANA.hgradient|1|&H0000FF|&H00FFFF
ANA.Mix|0|1|7
ANA.Show|1!
ANA.RGB_HLS_IR|1|2
ANA.Show|2!
ANA.HLS_RGB_IR|2|3
DMP.1
ANA.Show|3!
ENR.
RGB -> HLS
' Test RGB->HLS Conversion
' The Output is in the SPRE-Debug-Window
'
DBP.==============================
GUT.Input R,G,B||113,100,227|$$ERG
SBD.$$ERG|,|1|$$RED
SBD.$$ERG|,|2|$$GRN
SBD.$$ERG|,|3|$$BLU
DBP.RGB=$$RED,$$GRN,$$BLU
VTH.$$RED|$$RED|2
VTH.$$GRN|$$GRN|2
VTH.$$BLU|$$BLU|2
$$RGB=&H$$RED$$GRN$$BLU
DBP.RGB=$$RGB
ANA.RGB_To_HLS|$$RGB|$$HLS
VTH.$$HLS||6
DBP.HLS=$$HLS
GSS.1|2|$$HLS|$$HUE
GSS.3|4|$$HLS|$$LUM
GSS.5|6|$$HLS|$$SAT
VBT.$$HUE
' We use VAN. to make Decimal out of Hex-Values
VAN.$$HUA=&H$$HUE
VAN.$$LUA=&H$$LUM
VAN.$$SAA=&H$$SAT
VAR.$$OUT=H=$$HUA # L=$$LUA # S=$$SAA
DBP.HLS=$$OUT
ENR.
' HLS -> RGB Converter
' The Output is in the SPRE-Debug-Window
'
DBP.==============================
GUT.Input H,L,S||113,100,227|$$ERG
SBD.$$ERG|,|1|$$HUE
SBD.$$ERG|,|2|$$LUM
SBD.$$ERG|,|3|$$SAT
DBP.HLS=$$HUE,$$LUM,$$SAT
VTH.$$HUE|$$HUE|2
VTH.$$LUM|$$LUM|2
VTH.$$SAT|$$SAT|2
$$HLS=&H$$HUE$$LUM$$SAT
DBP.HLS=$$HLS
ANA.HLS_To_RGB|$$HLS|$$RGB
VTH.$$RGB||6
DBP.RGB=$$RGB
GSS.1|2|$$RGB|$$RED
GSS.3|4|$$RGB|$$GRN
GSS.5|6|$$RGB|$$BLU
VBT.$$RED
VAN.$$REA=&H$$RED
VAN.$$GRA=&H$$GRN
VAN.$$BLA=&H$$BLU
VAR.$$OUT=R=$$REA # G=$$GRA # B=$$BLA
DBP.RGB=$$OUT
ENR.
