MiniRobotLanguage (MRL)
"i"-Flag "child-window ID"
Search Child Window
Intention
The child-window ID is traditionally a internal number, that the programmer assigns a window control at design-time. Therefore it can be used to locate a window in many cases. But be careful, not all child-windows ID's are really consistent.

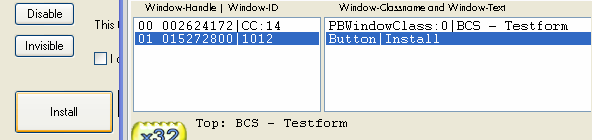

You can see the window ID in the windows-Inspector.
In this case the button "Install" has a ID of 1012. Such an ID looks good and the chances are good that you can use it for the localization of the button. Therefore it must be permanent, means, that if you start the program many times, the ID must be always the same.
This is not always the case. Watch out if:
• the child-window ID is higher then 32000
• the child-window ID is zero or -1
• the child-window has a class name that starts with "t" like "tnewcheckmark" or "tnewlistbox".
In all these cases, the chances are that the id is not the same between multiple starts of the application, and therefore unusable for a safe window localisation.
How do you localize a window using the ID?
' First get the Top-Window:
STW.t|testap
' then get the child-window
SCW.i|1012
' now you can click it!
MLC.
Normally there should not be multiple child-windows with the same ID in the same dialog. Therefore if you have a valid child-window ID, you do not need to specify a "c"-class or "t"-text to locate the window. The ID is enough.
Unless you want. A "t"- with text can improve readability of your script.
While it should not be needed, the "i" is a normal search flag and can be combined with all other search flags .
Short Examples:
-
Example
'**********************************************
' SCW-Sample
'**********************************************
' Start TestApp only, if it's is not yet running.
'
STW.wtUXg|0|TestApp|found
EXE.?exepfad\Sample Apps\TestApp_01.exe
:found
STW.t|testapp
SCW.to|button 1|ero
SWS.i
GCT.
SCW.tuo|button 1|ero
SWS.vd
GCT.
SCW.tfo|button 1|ero
SWS.id
GCT.
SCW.tufo|button 1|ero
SWS.
ENR.
:ero
MBX.Window not found!
ENR.
Remarks
Normally there should not be multiple child-windows with the same ID in the same dialog. Therefore if you have a valid child-window ID, you do not need to specify a "c"-class or "t"-text to locate the window. The ID is enough.
While it should not be needed, the "i" is a normal search flag and can be combined with all other search flags, including "c" or "t".
Limitations:
