MiniRobotLanguage (MRL)
STR.DeleteTo
Delete a Range of Characters from a String by Position
Remove characters from a source string between specified start and end positions.
Intention
The STR.DeleteTo command removes a range of characters from a source string, defined by a start position (P2) and an end position (P3), and modifies the source string directly.
The range is inclusive, deleting all characters from the start to the end position. This command is useful for removing specific substrings, whitespace, or binary data segments.
It is safe for binary data, as variables in the source string are resolved only once, preventing unwanted substitutions.
For deleting a specified number of characters (to the right or left), use STR.Delete instead.
•The range is inclusive, deleting characters from P2 to P3 (both positions included).
•Positions are 1-based and must be positive integers within the string length.
•If P2 or P3 is invalid (e.g., zero, negative, or beyond string length) or P2 > P3, no deletion occurs.
If the source string is empty or the range is invalid, the source string remains unchanged.
Syntax
STR.DeleteTo|P1|P2|P3
Parameter Explanation
•P1 - (Source and Destination Variable) The string from which characters are deleted. Modified directly with the resulting string.
•P2 - (Start Position) A numeric value specifying the 1-based starting position of the range to delete. Resolved to an integer.
•P3 - (End Position) A numeric value specifying the 1-based ending position of the range to delete (inclusive). Resolved to an integer.
Examples
'***********************************

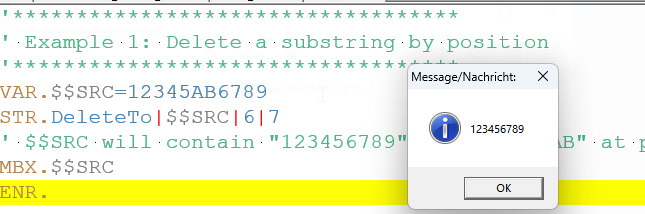

' Example 1: Delete a substring by position
'***********************************
VAR.$$SRC=12345AB6789
STR.DeleteTo|$$SRC|6|7
' $$SRC will contain "123456789" (deletes "AB" at positions 6-7)
MBX.$$SRC
ENR.
'***********************************
' Example 2: Delete leading spaces
'***********************************
VAR.$$SRC= HelloWorld
STR.DeleteTo|$$SRC|1|3
' $$SRC will contain "HelloWorld" (deletes three spaces at positions 1-3)
MBX.$$SRC
ENR.
'***********************************
' Example 3: Invalid range (no deletion)
'***********************************
VAR.$$SRC=HelloWorld
STR.DeleteTo|$$SRC|6|4
' $$SRC remains "HelloWorld" (invalid range, P2 > P3)
MBX.$$SRC
ENR.
Remarks
- Variables in the source string (P1) are resolved only once, ensuring safety for binary data (e.g., null characters or special sequences).
- P2 and P3 are resolved to integers; non-integer values are rounded down.
- The command is efficient for removing specific ranges, especially in large strings or binary data.
- For deleting a specified number of characters (including to the left), use STR.Delete.
Limitations:
- P2 and P3 must be positive integers within the string length, and P2 must not exceed P3; invalid values prevent deletion.
- No option to store the result in a separate variable; P1 is always modified.
- Case-sensitive; no case-insensitive variant available.
