MiniRobotLanguage (MRL)
STR.nis
STR.NInstr
Instring Command, will search for the n'th search-Terms in one run.
Intention
This command is used to find the n'th match of a search Termin in Mainstring.
It will return the Position of the found Term.
$$OUT=?exeloc\Result.txt
$$TXT=<ABCDEFG>$crlf$<123456>$crlf$<abcdEFg>$crlf$
$$SEA=EF
$$POS=1
$$NUM=2
STR.nis|$$TXT|$$SEA|$$NUM|$$POS|$$RES
DMP.6
MBX.$$RES
ENR.
Result:
The Text was found at Position 27.
$$OUT=?exeloc\Result.txt
$$TXT=<ABCDEFG>$crlf$<123456>$crlf$<abcdEFg>$crlf$
$$SEA=ef
$$POS=1
$$NUM=2
STR.nis|$$TXT|$$SEA|$$NUM|$$POS|$$RES
DMP.6
MBX.$$RES
ENR.

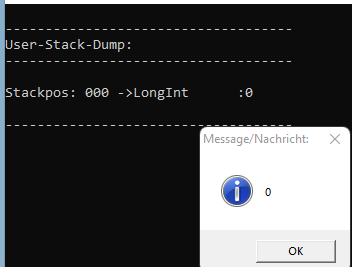

Result:
The Text "ef" was not found.
Syntax
STR.nis|P1|P2|P3[|P4][|P5]
STR.NInstr|P1|P2|P3[|P4][|P5]
Parameter Explanation
P1 - (Mainstring,Text) Variable with Text (Mainstring).
P2 - (Input,Text) Variable with the Text to search for.
P3 - (Input,Numeric) Variable with Number of the wanted appearance of the search term.
P4 - (Input,Numeric) Variable with Starting-Position from where the Search will start.
P5 - (Output,Numeric) Variable that will contain the result. The result will also be put on TOS.
Example
'*****************************************************
' EXAMPLE 1: STR.nis
'*****************************************************
$$OUT=?exeloc\Result.txt
$$TXT=<ABCDEFG>$crlf$<123456>$crlf$<abcdEFg>$crlf$
$$SEA=CD
$$POS=1
$$NUM=1
STR.nis|$$TXT|$$SEA|$$NUM|$$POS|$$RES
DMP.6
MBX.$$RES
ENR.
Remarks
-
Limitations:
-
See also:
• 1.5.2 Working with Text-Strings
• VAR. - Variable Set Value/Clear
• IVS. / NVS. - If-Variable-String
• SBD. - String between Delimiter
• SBM. - String between Delimiter-Multiple
