MiniRobotLanguage (MRL)
TVF. Command
Tree View Found
Intention

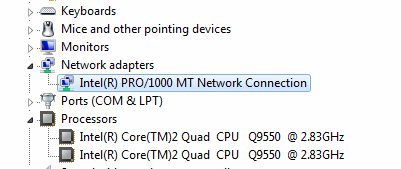

These command will select a treeview item. A treeview is a special type of control and may look like this:
Please see here for more details and examples about TVF.and treeviews.
Here are some more hints:
' Locate the first fitting element
TVF.Intel(R) Core||1
' Locate the second fitting element
TVF.Intel(R) Core||2
For P1 a 3.2 Standard-Search Pattern can be used.
TVF. uses the direct engine for most flags.
' Here is an example that will uncheck an treeview-checkmark
STW.ct|#32770|Main
SCW.nct|1|SysTreeView32|SysTreeView32_1
TVF.Item8|d
There are two commands to work with treeviews.
TVI. - uses a path to the item and uses wildcard-patterns
TVF. - uses 3.2 Standard-Search Pattern
Syntax
TVF.P1[|P2][|P3]
Parameter Explanation
Searchargument
P1 - item name can use 3.2 Standard-Search Pattern
P2 - (optional) flags
Flags
n - avoid first regular "Enshure visible" for item
c - collapse the tree before going on
e - expand the tree
v - do a second "Enshure visible"
w - do a "Wait for Input Idle" with max time 5 seconds.
l - locate checkbox/Install-Box on the left, no click
a - Algo 2 to find a checkbox/Install-Box on the left
side of the tree-item
i - "install" - opens the the selected MSI-Tree-menu
b - Check checkmark Item in a Treeview (direct engine)
d - UnCheck Checkmark Item in a Treeview (direct engine)
s - Select, select the treeview Item (direct engine)
m - Klick with MLE. on tree-item (direct engine)
o - click using compatible engine (MLI.)
You can combine all Flags, but not all combinations are useful. Also note that the order of the flags may influence the result. Generally the flags are processed from left to right.
P3 - (optional) number, if omitted, default number is 1.
Example
'***********************************************
' TVF.-Sample
'***********************************************
STW.ct|MMCMainFrame|Geräte
SCW.c|systreeview32
TVF.Bluetooth
TVF.&DOCAPS:&EXACT:HP Integrated Bluetooth module
TVF.:&EXACT:HP Integrated Bluetooth module
TVF.Bluetooth||3
MMV.
'***********************************************
Remarks
On the stack, you can find the name of the selected element .
It's only the name of the element, not the full path to the element, like in TVI..
The command has internally a different path for x32 and x64 applications.
Limitations:
-
See also:
