MiniRobotLanguage (MRL)
WFP. Wait For Pattern
Wait for appearance of a Pattern and then get the Locations of a specified Pattern-Object in an Image-Register (IR)
Intention
This command will wait until a specified Pattern will appear or disappear.
It will then find the Locations where a specified Object is in an Image. It uses only 3 Parameter and is easy to use.
The cammand can be given a Timeout Value, if this specified time is over the Command will exit and set the Timeout-Flag
and put a "0" on the TOS.
This command uses internally multiple Levels (4 Levels) of Fuzzy-Logic.
It will search all of the currently localized Top-Window.
The WFP.-Command will use additional Parameters that can be changed using the SFP.-Command.
These are for example the Color-Tolerance and the number of "needed Pixel-Hits".
Hereby Pixel-Hits are the number of Pixels that do match the Pattern using the given Color-Tolerance.
Please see the LFP.-Commands for more Details.
1. Use WFP with 3 Parameters and default settings
This will include all Screens on a Dual-Screen System. Here we search a Pattern on the complete Desktop.
STW.BAct|PBWindowClass:0|JK - IDE 2.
SWP.0,0|2807,1800|T
' P1 - Pattern-File, P2 - Target-Position adjust, P3- Timeout in Seconds
WFP.$$LAA|0,50|60
MMV.
ENR.
If you Specify P3, then P3 is the timeout value..
On the TOS you will find all the Results.
2. Use WFP. and set the default Parameters with SFP. before
You can change more advanced Parameters that WFP. uses with the SFP.-Command.
STW.ct|PBWindowClass:0|JK - IDE 2.
' Set Maxmimum Results Number to 4
SFP.MaxResults|4
' Set Minimum Pixel-Hits to 63
SFP.PixelHits|63
' Set Color-Tolerance to 12
SFP.ColorTolerance|12
' P1 - Pattern-File, P2 - Target-Position adjust, P3- Timeout in Seconds
WFP.$$LAA|0,50|60
MMV.
ENR.
3. Use WFP. together with Image-Register and Inline-Data
You can use Inline-Data instead of pictures from files.
STW.ct|TFrmHelpMan|minirobot.hm
GSB.PattA
ANA.#FromVar|1|$$DTA
$$PAT=IR:1
SFP.ColorTolerance|0
SFP.PixelHits|57
SFP.DebugMode|0
' Patternfile | Point-Shift| Timeout 60 Seconds
WFP.$$PAT|0,0|60
' We take away the number of Hits from TOS
POP.$$NOH
' If no Hits, jump away to Lab_NoHits.
JIZ.$$NOH=0|Lab_NoHits1
MMV.
:Lab_NoHits1
ENR.
' You can also use Formula for the IR
WFP.IR:($$PAT+5)|0,0|60
4. Use WFP. directly with Inline-Data
You can use Inline-Data instead of pictures from files.
STW.Act|TFrmHelpMan|minirobot.hm
GSB.PattA
$$PAT=ID:$$DTA
' P1 - Target, P2 - Pattern, P3 - Color-Tolerance, P4 - min. Hits (Pixel) maximum Number:64 . We use -10%, P5 - Debugmode 0/1
SFP.ColorTolerance|0
SFP.PixelHits|57
SFP.DebugMode|1
' Patternfile | Point-Shift| Timeout 60 Seconds
WFP.$$PAT|0,0|60
' We take away the number of Hits from TOS
POP.$$NOH
' If no Hits, jump away to Lab_NoHits.
JIZ.$$NOH=0|Lab_NoHits1
MMV.
:Lab_NoHits1
ENR.
' Alternativ you can also write:
WFP.ID:$$DTA|0,0|60
Syntax
WFP.[!]P1[|P2][|P3]
Parameter Explanation
! - If the ! is specified then the Command will wait for the Patterns to disappear, ("Wait for no Pattern")
P1 - Pattern File-Name and Path
or Specify "IR:" and Image-Register number for Pattern from an Image-Register..
or Specify "ID:$$DTA" und directly use Inline-Data as Pattern.
P2 - opt. Destination Point Shift, will be used to move the target point by a specified amount of Pixels.
For example, if the Target is found at 100,50 and you specify here -10,40 then the final Point will be at 90,90.
P3 - opt. Timeout value. If omitted the command will wait "Forever".

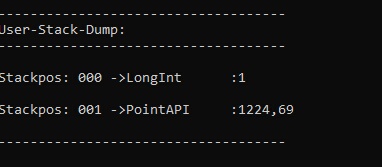

The Command will leave a the number of finds on the TOS, followed by all finds.
The Result "0" means "nothing found", a result of -1 means "Error", while a "1" or a higher number shows the number of found matches.
The maximum Number of found Locations is limited by the "Max-Results" Setting that can be changed using the "SFP.-Command".
The last found Position will automatically set as the "Active Point".
If the Pattern did not appear in teh given Time, then you will get a result "0" on TOS and the Timeout-Flag will be set.
The program will not generate an Error-Message.
Example
-
Remarks
Do not use ".jpg" Images or images that are compressed with Artefacts. Generally use ".bmp" or ".png" Images. Otherwise the result will be hard to predict.
Limitations:
The resolution of the Pattern-Images that can be used is limited to those resolutions that can be saved with the "Human Eye-Recorder"-Tool.
