MiniRobotLanguage (MRL)
XML.Get this Name
XML.gtn
Get the name of the Tag at the actual position
Intention
This command is used to retrieve the Tag's name a t the actual position.
Here are two examples for Tag-Names:
' The name of this Tag is "Patch"
<Patch PatchName="SQLServer2">
' The name of this Tag is SP
<SP SPName='SP3'/>
Usage is simpe:
XML.gtn
PRT.Name is: $$000
or
XML.gtn|$$BAB|$$POS
PRT. The Tag name at position $$POS is $$BAB.
Syntax
XML.Get this Name[|P2][|P3]
Parameter Explanation
P2 - (optional) Variable to return the result. The result is the name of the Tag
or "" if no name could be retrieved.
If P2 is omitted, the result is been placed on TOS
P3 - (optional) numeric Byte address of the XML-Data Byte that
should be taken as position. If P3 is omitted, the actual position is taken instead.
Example
'***********************************
'
'***********************************
'
$$XMF=?pfad\SQ_XML.txt
NEF.$$XMF
MBX.File $$XMF was not found!
GTO.enx
EIF.
' Now we are going to parse it
XML.Load File|$$XMF
' We check if there are errors
JIT.Lab_Err
' We get the "actual position" - after parsing.
XML.get pos|$$POS
PRT.Actual Position after Parsing is: $$POS
' Hier gehts los
PRT.------------------------
XML.sdn|&EXACT:Patch
XML.get pos|$$POS
PRT.Actual Position is: $$POS
XML.gtn
PRT.Name is here: $$000
XML.gse|$$BSA|$$BSE
PRT.Current Block starts at: $$BSA
PRT.Current Block ends at: $$BSE
XML.gtn|$$BAA|$$BSA
PRT. Using gtn on $$BSA -> $$BAA
XML.gtn|$$BAB|$$BSE
PRT. Using gtn on $$BSE -> $$BAB
PRT.------------------------
PRT. We Dump Positions
XML.Dump|($$POS-3)|($$POS+3)
MBX.!
:enx
ENR.
'-----------------------------------------------------------
' Error Handler
:Lab_Err
XML.get error|$$ERT
DBP.$$ERT
ENR.

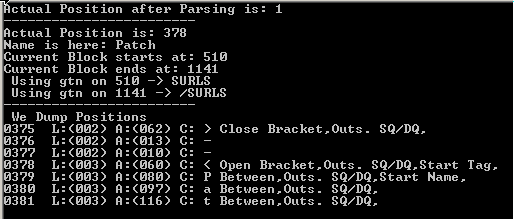

This is the result of the sample script:
Remarks
-
Limitations:
-
See also:
• ! Smart Package Robot 's XML-Features
• XML. - eXtended Markup Language
