MiniRobotLanguage (MRL)



XML.Print

XML.prt

Pretty Print the whole XML-Data into a Variable or a debug console





Intention



This command will print the whole XML-Data into a Debug- Console window, or if a variable is given, into the variable.

It will try to produce XML-Text that is loadable into a text-editor program, by inserting

Linefeeds between the Tags.



XML.Print|$$END

$$FIL=?desktop\PrintOut.txt

DEL.$$FIL

CTF.$$FIL|$$END



if you omit the variable, the Printout will go into a debug console window.



XML.Print







Syntax





XML.Print[|P2]







Parameter Explanation



P2 - Variable to return the XML-Listing.







Example



'***********************************

'

'***********************************

'

$$XMF=?pfad\Small_XML.txt

NEF.$$XMF

 MBX.File $$XMF was not found!

 GTO.enx

EIF.

' Now we are going to parse it

XML.Load File|$$XMF

' We check if there are errors

JIT.Lab_Err

' We get the "actual position" - after parsing.

XML.Print

PRT.------------------------

XML.Print|$$END

$$FIL=?desktop\PrintOut.txt

DEL.$$FIL

CTF.$$FIL|$$END

MBX.!

:enx

ENR.

'-----------------------------------------------------------

' Error Handler

:Lab_Err

XML.get error|$$ERT

DBP.$$ERT

ENR.

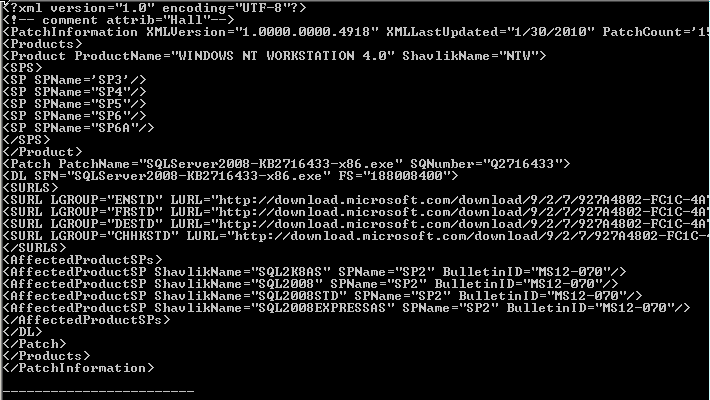

This is the result of the sample script:







Additionally you will find a file caller "Printout.txt" on your desktop.









Remarks



-







Limitations:



-





See also:



•   ! Smart Package Robot 's XML-Features

•   ! SPR - XML-Parser Flags

•   XML. - eXtended Markup Language

•   par - parse from var

•   dmp - Dump
