MiniRobotLanguage (MRL)
XML.Start Tag Up
XML.stu
Move the actual position to the next Start Tag in upward direction
Intention
This command will move the actual position to the next Start Tag in upward direction.
Syntax
XML.Start Tag Up[|P2]
Parameter Explanation
P2 - (optional) Variable to return the result. The result is >0 and contains the
actual position that is on a start-tag.
If nothing was found the result is zero, and the actual position is not changed.
If omitted, the result is been placed on TOS
Example
'***********************************
'
'***********************************
'
$$XMF=?pfad\SQ_XML.txt
NEF.$$XMF
MBX.File $$XMF was not found!
GTO.enx
EIF.
' Now we are going to parse it
XML.Load File|$$XMF
' We check if there are errors
JIT.Lab_Err
' We get the "actual position" - after parsing.
XML.get pos|$$POS
PRT.Actual Position after Parsing is: $$POS
' Hier gehts los
PRT.------------------------
XML.sdn|Affec&ANDTHEN:Prod
XML.get pos|$$POA
PRT.Actual Position after sdn is: $$POA
PRT.------------------------
XML.set pos|-1
XML.get pos|$$POB
PRT.Actual Position at XML-Length is: $$POB
PRT.------------------------
XML.sun|Affec&ANDTHEN:Prod
XML.get pos|$$POC
PRT.Actual Position after sun is: $$POC
PRT.------------------------
XML.Dump|($$POA-3)|($$POA+3)
PRT.------------------------
XML.Dump|($$POB-3)|($$POB+3)
PRT.------------------------
XML.Dump|($$POC-3)|($$POC+3)
MBX.!
:enx
ENR.
'-----------------------------------------------------------
' Error Handler
:Lab_Err
XML.get error|$$ERT
DBP.$$ERT
ENR.
ENR.

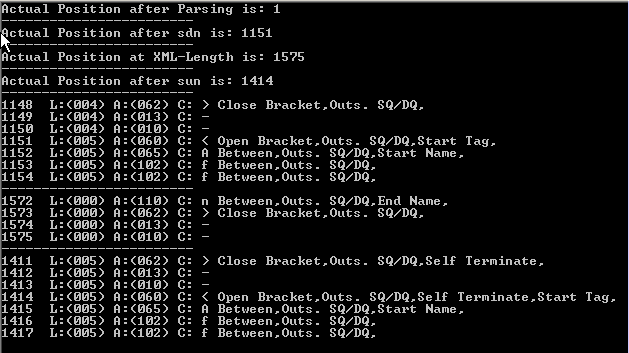

This is the result of the sample script:
Remarks
-
Limitations:
-
See also:
• ! Smart Package Robot 's XML-Features
• XML. - eXtended Markup Language
