MiniRobotLanguage (MRL)
XML.UnWrap
UnWrap a tag / remove the <>
Intention
This command is used to extract the inside from an XML-Tag.
In short this command will remove the < > from the tag.
As Input you give it any Tag, as the result you will get an Text.
UnWrap is intelligent, look what it really does.
' We do a simple UnWrap
$$XMF=Hallo>
XML.UnWrap|$$XMF
PRT.7.UnWrapped: $$XMF
PRT.------------------------
' We do a more complex UnWRAP
$$XMF=<Hallo>>
XML.UnWrap|$$XMF
PRT.8.UnWrapped: $$XMF
PRT.------------------------
' We do a even more complex UnWRAP (Notice the space left of the <)
$$XMF= <Hallo
XML.UnWrap|$$XMF
PRT.9. UnWrapped: $$XMF
PRT.------------------------
' We do a even more complex UnWRAP (Notice the spaces left of the <)
$$XMF= <<Hallo>
XML.UnWrap|$$XMF
PRT.10. UnWrapped: $$XMF
PRT.------------------------
' We do a even more complex UnWRAP (Notice the space right of the >)
VAR.$$XMF=$sp$<Hallo>$sp$
XML.UnWrap|$$XMF
PRT.11. UnWrapped: $$XMF
PRT.------------------------
' We do a maximum complex UnWRAP (Notice the space right of the >)
VAR.$$XMF=$sp$ <<<Hallo>>> $sp$
XML.UnWrap|$$XMF
PRT.12. UnWrapped: $$XMF
PRT.------------------------
MBX.!
ENR.
As you can see in the Output below, the UnWrap command is intelligent in what its doing.
It will not "just remove any <>.
It will first check
• does the text need to be trimmed?
• are there brackets around?
• Whitespaces inside the Tag are preserved
• Whitespaces before the < or
• after the > are trimmed
• it will trim all XML Whitespaces and Tabs, these are ASCII: &H20,&H9,&HD,&HA
Syntax
XML.UnWrap|P2[|P3]
Parameter Explanation
P2 - Variable with XML-Data that is to be UnWrapped from the <>.
If P3 is omitted, the result it stored into this variable.
P3 - (Optional) Variable to return the result.
Example
'***********************************
' XML.Warp/Unwrap Sample
'***********************************
' We do a simple Wrap
$$XMF=Hallo
XML.Wrap|$$XMF
PRT.1. Wrapped: $$XMF
PRT.------------------------
' We do a more complex WRAP
$$XMF=<Hallo
XML.Wrap|$$XMF
PRT.2. Wrapped: $$XMF
PRT.------------------------
' We do a even more complex WRAP (Notice the space left of the <)
$$XMF= <Hallo
XML.Wrap|$$XMF
PRT.3. Wrapped: $$XMF
PRT.------------------------
' We do a even more complex WRAP (Notice the spaces left of the <)
$$XMF= <<Hallo
XML.Wrap|$$XMF
PRT.4. Wrapped: $$XMF
PRT.------------------------
' We do a even more complex WRAP (Notice the space right of the >)
VAR.$$XMF=$sp$<Hallo>$sp$
XML.Wrap|$$XMF
PRT.5. Wrapped: $$XMF
PRT.------------------------
' We do a maximum complex WRAP (Notice the space right of the >)
VAR.$$XMF=$sp$ <<<Hallo>>> $sp$
XML.Wrap|$$XMF
PRT.6. Wrapped: $$XMF
PRT.------------------------
' We do a simple UnWrap
$$XMF=Hallo>
XML.UnWrap|$$XMF
PRT.7.UnWrapped: $$XMF
PRT.------------------------
' We do a more complex UnWRAP
$$XMF=<Hallo>>
XML.UnWrap|$$XMF
PRT.8.UnWrapped: $$XMF
PRT.------------------------
' We do a even more complex UnWRAP (Notice the space left of the <)
$$XMF= <Hallo
XML.UnWrap|$$XMF
PRT.9. UnWrapped: $$XMF
PRT.------------------------
' We do a even more complex UnWRAP (Notice the spaces left of the <)
$$XMF= <<Hallo>
XML.UnWrap|$$XMF
PRT.10. UnWrapped: $$XMF
PRT.------------------------
' We do a even more complex UnWRAP (Notice the space right of the >)
VAR.$$XMF=$sp$<Hallo>$sp$
XML.UnWrap|$$XMF
PRT.11. UnWrapped: $$XMF
PRT.------------------------
' We do a maximum complex UnWRAP (Notice the space right of the >)
VAR.$$XMF=$sp$ <<<Hallo>>> $sp$
XML.UnWrap|$$XMF
PRT.12. UnWrapped: $$XMF
PRT.------------------------
MBX.!
ENR.

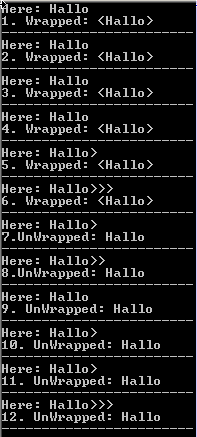

below is the result of the sample script:
You can see that the Wrap and the UnWrap commands are smart and deliver you exactly what you need.
Remarks
Wrap does not automatically "UnClean" the Text, if needed use the "XML.UnClean" Command first.
Limitations:
-
