ANA.Complementary_Color
Calculate the Complementary Color Value for a given 24-bit Color-Value
ANA.Inverse_Color
Calculate the Inverse Color Value for a given 24-bit Color-Value
Intention
This command will return the Inverse / or complementary color value of a given 24-bit Color-Value.
To show the difference of both here is an example:

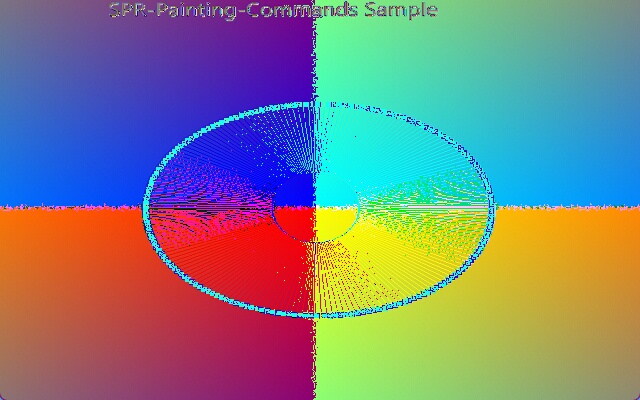

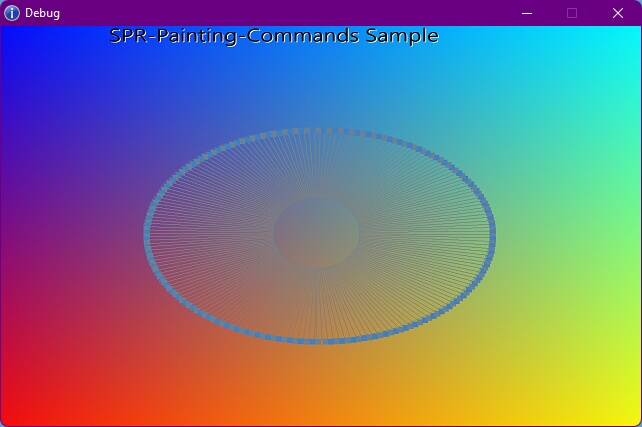

Original Picture Inverse Color Complementary Color
The Complementary Color is very good to use as Text on Pixels. The Inverse Color is exactly the Inverse Color in the Color-Wheel.
NEF.$$PIA
MBX.No such file.
ENR.
EIF.
ANA.Load|0|$$PIA
ANA.ResizeTo|0|1|640|400
ANA.Copy|1|0
ANA.Copy|1|2
ANA.GetRes|1|$$XRE|$$YRE
FOR.$$LOX|0|$$XRE
PRT.Column: $$LOX/$$XRE
FOR.$$LOY|0|$$YRE
ANA.getpixelcolor|0|$$LOX|$$LOY|$$PIB
ANA.Inverse_Color|$$PIB|$$PIC
ANA.Complementary_Color|$$PIB|$$PID
ANA.Setpixelcolor|1|$$LOX|$$LOY|$$PIC
ANA.Setpixelcolor|2|$$LOX|$$LOY|$$PID
NEX.
NEX.
ANA.Compare|1|2|0
POP.$$RES
PRT.Result of Compare: $$RES
GSB.Save|1
GSB.Save|2
ENR.
Here is another Version of the Script using a Picture with a Person.

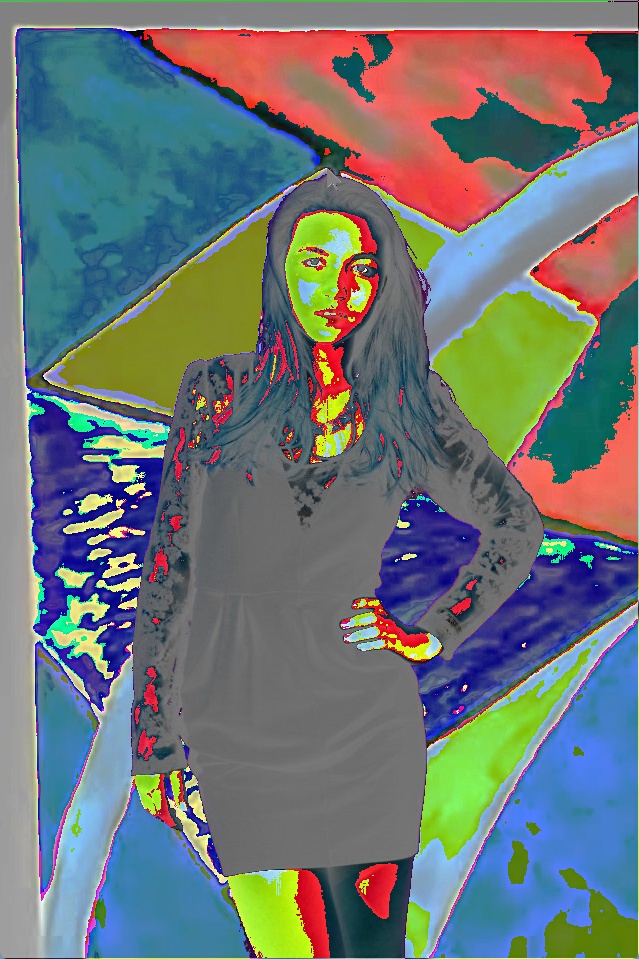

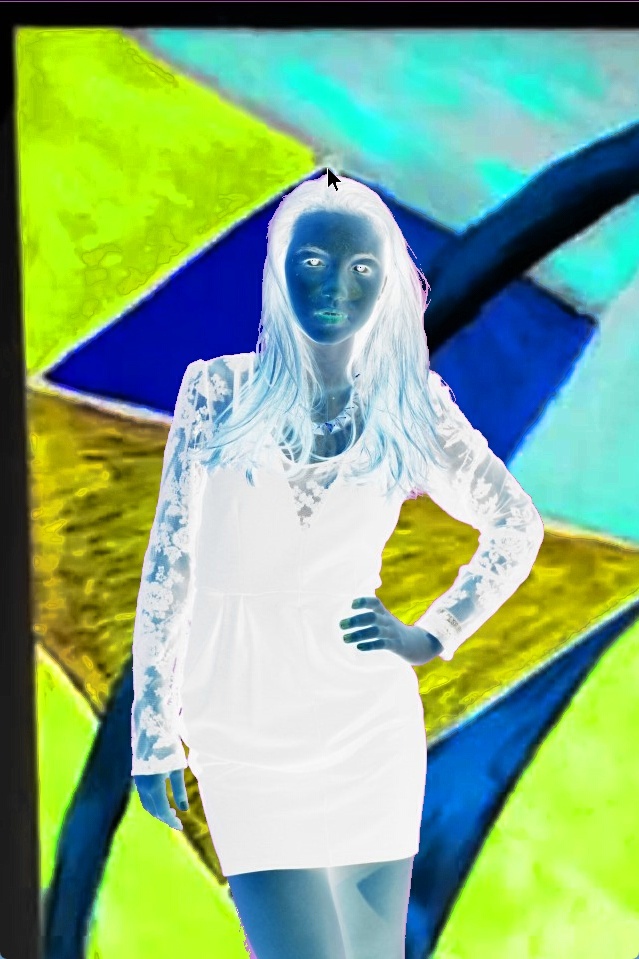

Original Picture ANA.Inverse_Color ANA.Complementary_Color Complement of Inverted Color

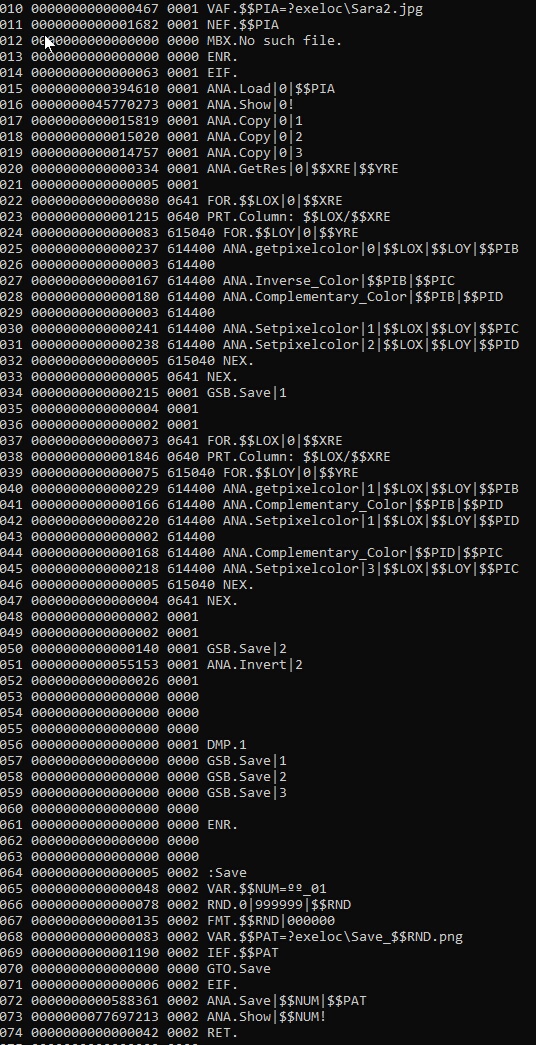

NEF.$$PIA
MBX.No such file.
ENR.
EIF.
ANA.Load|0|$$PIA
ANA.Show|0!
ANA.Copy|0|1
ANA.Copy|0|2
ANA.Copy|0|3
ANA.GetRes|0|$$XRE|$$YRE
FOR.$$LOX|0|$$XRE
PRT.Column: $$LOX/$$XRE
FOR.$$LOY|0|$$YRE
ANA.getpixelcolor|0|$$LOX|$$LOY|$$PIB
ANA.Inverse_Color|$$PIB|$$PIC
ANA.Complementary_Color|$$PIB|$$PID
ANA.Setpixelcolor|1|$$LOX|$$LOY|$$PIC
ANA.Setpixelcolor|2|$$LOX|$$LOY|$$PID
NEX.
NEX.
' Show Inverted Picture
GSB.Save|1
' Complement Inverted Picture
FOR.$$LOX|0|$$XRE
PRT.Column: $$LOX/$$XRE
FOR.$$LOY|0|$$YRE
ANA.getpixelcolor|1|$$LOX|$$LOY|$$PIB
ANA.Complementary_Color|$$PIB|$$PID
ANA.Setpixelcolor|1|$$LOX|$$LOY|$$PID
'Complement Complemented Color
ANA.Complementary_Color|$$PID|$$PIC
ANA.Setpixelcolor|3|$$LOX|$$LOY|$$PIC
NEX.
NEX.
' Invert Result from Complementry Color in one strike
GSB.Save|2
ANA.Invert|2
DMP.1
GSB.Save|1
GSB.Save|2
GSB.Save|3
ENR.
'===========================================================
:Save
$$NUM=§§_01
RND.0|999999|$$RND
FMT.$$RND|000000
IEF.$$PAT
GTO.Save
EIF.
ANA.Save|$$NUM|$$PAT
ANA.Show|$$NUM!
RET.
'===========================================================
ENR.
Syntax
ANA.Complementary_Color[|P1][|P2][|P3][|P4]
ANA.Inverse_Color[|P1][|P2][|P3][|P4]
Parameter Explanation
P1 - Source Color Value (24-Bit, Format in Hexadezimal: &HFFFFFF=RR GG BB)
P2 - Variable for Color-Value for Red
P3 - Variable for Color-Value for Green
P4 - Variable for Color-Value for Blue
If any of the Variables is missing, the value is been placed on the TOS.
Example
See above.
Remarks
The ANA.Split_Color_RGB is optimized for Speed. It will use only about 444 Ticks. Therefore the Robot could split more then 36000 Values per Second.
