ANA.Fill
Fill Register (IR) with Color or Line-Pattern
Intention
This command will fill an IR with a solid Background-Color. Optionally it will then draw a Pattern on this.
In case there is another picture in the IR, this will be overwritten.
STW.ct|#32770|Basic-NAV Matrix 02
' We snap into the IR 2 here
ANA.Snap|2
' Copy IR 2 into IR 1
ANA.Fill|2|1
' Display IR 1
ANA.Show|1!
ENR.
This will create a series of Patterns. Note that you can not just fill an empty IR, you need to create an IR first, using the ANA.New-Command.
ANA.New|0|320|200
FOR.$$LOP|0|6
ANA.Fill|0|&H00FFFF|$$LOP|&HF020F0
NEX.
ENR.
Syntax
ANA.Fill[|P1][|P2][|P3]
Parameter Explanation
P1 - opt. Source Image-Register Number, if omitted 0 is used.
P2 - opt. Color for Background, if omitted White (&HFFFFFF) is used.
P3 - opt. Number for Pattern, if omitted 0 is used.

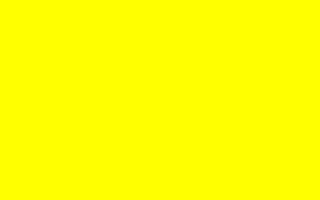

0 - Solid (default)

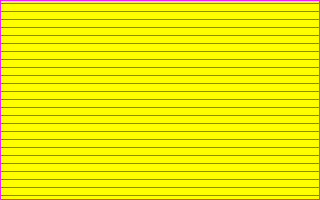

1 - Horizontal Lines

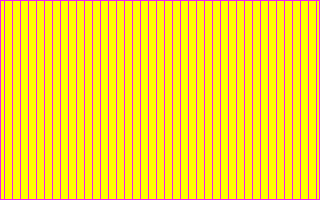

2 - Vertical Lines
3 - Upward Diagonal Lines

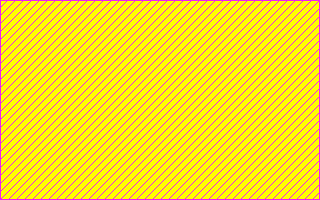

4 - Downward Diagonal Lines

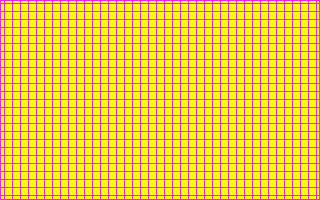

5 - Crossed Lines
6 - Diagonal Crossed Lines
P4 - opt. Color for Pattern, if omitted Black (&H0) is used.
The Command will leave a 0/1 on the TOS. As always, a 0 means Error, while a 1 means "all fine".
Example
'***********************************
' ANA.Fill-Sample
'***********************************
ANA.New|0|320|200
ANA.Fill|0|&HFFFFFF|1|&HFF0000
ANA.Show|0!
ENR.

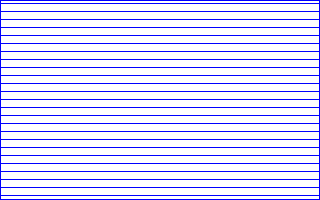

' Below you can see the result of the Operation.
Remarks
Currently there is no way to change the distance between the lines or the thickness of the lines.
