MiniRobotLanguage (MRL)
ANA.GetPixelRGB
Get the Color of a Single Pixel from an Image-Register (IR) in three values for Red, Green and Blue
Intention
This command will read the color of a Single Pixel in an IR. It will return the Color in its Red, Green and Blue Component.
As we use 24-bit Colors, the returned color will be 0.255 (0-&HFF) for each Component Red, Green and Blue.
You can use this command together with other Commands like ANA.SetPixelRGB.
1. Remove Green Background on a picture using an SPR-Script
In this Sample we will remove the Background on a picture using the SPR.
For this we will read the Pixel, check if its mostly Green, and in that case replace
Due to the use of a nested Loop going "Line by Line" through all Pixels, it is recommended to start the script in the Editor using "Freerun Mode".
Even then the Script still may use several Minutes to finish. You will see in the Editor-Debug-Window the current Line and the last line.
You will not see the Robot Painting unless the Show command is been called which leads to an Update in the Show-Window.
VAN.$$TIM=#time#
ANA.Load|0|$$PIA
ANA.Load|1|$$PIB
ANA.Show|0!
ANA.Show|1!
ANA.GetRes|0|$$XSZ|$$YSZ
FOR.$$YPO|1|$$YSZ
DBP.$$YPO/$$YSZ
FOR.$$XPO|1|$$XSZ/2
ANA.GetPixelRGB|0|$$XPO|$$YPO|$$RED|$$GRN|$$BLU
CAL.$$ERG=($$GRN>&H80)+($$GRN>$$BLU)+($$GRN>$$RED))
IVV.$$ERG>2
ANA.getpixelcolor|1|$$XPO|$$YPO|$$PIX
ANA.Setpixelcolor|0|$$XPO|$$YPO|$$PIX
EIF.
NEX.
NEX.
CAL.$$TIM=#time#-$$TIM
DBP.Used Time in Seconds: $$TIM
ANA.Show|0!
ENR.
This box is filled and it is drawn with inverted background color. The second Part of the Script will draw 2500 random Lines.

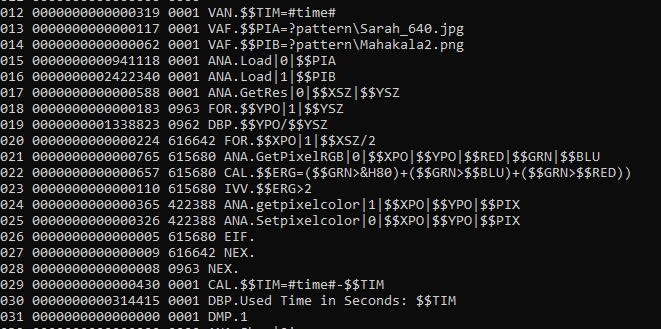

The Speed-dump shows that the Robot can read about 40.000 Pixels per second.
2. Color-Processing
In this Sample we will additionally change the Colors.For this we use the two Commands:
ANA.getpixelcolor|1|$$XPO|$$YPO|$$PIX
' This is just for example normally you would use ANA.GetPixelColor_RGB which combines these commands.
ANA.Split_Color_RGB|$$PIX|$$COR|$$COG|$$COB
' We Combine the Colors in away that Blue and Green is exchanged.
ANA.Combine_Color_RGB|$$COG|$$COR|$$COB|$$PIX
' And Set the Pixel
ANA.Setpixelcolor|0|$$XPO|$$YPO|$$PIX
And then Paint the Picture.
In the SPR you can use virtually unlimited Graphics Sources to be combined.
.
' Here is the Code.
' On my Computer it uses 5 MinutesProcessing time for a Picture of Medium size in the Editor in "Free-Run Mode".
VAN.$$TIM=#time#
ANA.Load|0|$$PIA
ANA.Load|1|$$PIB
ANA.GetRes|0|$$XSZ|$$YSZ
FOR.$$YPO|1|$$YSZ
DBP.$$YPO/$$YSZ
FOR.$$XPO|1|$$XSZ/2
ANA.GetPixelRGB|0|$$XPO|$$YPO|$$RED|$$GRN|$$BLU
CAL.$$ERG=($$GRN>&H80)+($$GRN>$$BLU)+($$GRN>$$RED))
IVV.$$ERG>2
ANA.getpixelcolor|1|$$XPO|$$YPO|$$PIX
ANA.Split_Color_RGB|$$PIX|$$COR|$$COG|$$COB
ANA.Combine_Color_RGB|$$COG|$$COR|$$COB|$$PIX
ANA.Setpixelcolor|0|$$XPO|$$YPO|$$PIX
EIF.
NEX.
NEX.
CAL.$$TIM=#time#-$$TIM
DBP.Used Time in Seconds: $$TIM
DMP.1
ANA.Show|0!
ENR.
The Script used 306 Seconds to complete process the picture.
Here is the Speed-Dump:
Syntax
ANA.GetPixelRGB[|P1][|P2][|P3][|P4][|P5][|P6]
Parameter Explanation
P1 - Source Image-Register number
P2 - X1 - Upper Left Coordinat X-Value
P3 - Y1 - Upper Left Coordinat Y-Value
P4 - opt. Variable for returned Color-Value RED. If omitted TOS is used.
P5 - opt. Variable for returned Color-Value GREEN. If omitted TOS is used.
P6 - opt. Variable for returned Color-Value BLUE. If omitted TOS is used.
The color values will always be in the range between 0-255. This is Hexadacimal: 0 - &HFF.
Example
See above.
Remarks
The ANA.GetPixelRGB is optimized for Speed. It will use only about 400 to 600 Ticks. Therefore the Robot could read more then 30000 Pixels per Second.
Limitations:
-
See also:
•
