BIT.Store - Set Bit to 1 or 0
Set Bit to 1 or to 0
Intention
Technically BIT.Store will set or clear a specified Bit in P1, depending on P3 is 0 or 1.
The parameters P1 and P2 can be given as value or as "binary".
The result is in P1. Please see ! Smart Package Robot 's BIT. - Operations
VAN.$$LEA=1
VAN.$$P01=(64+16+4)
VAN.$$P02=2
VAN.$$P03=1
VAN.$$P04=$$P01
BIT.Show|v$$P01|$$ERA|$$LEA
BIT.Store|v$$P01|v$$P02|$$P03|$$LEA
BIT.Show|v$$P01|$$ERC|$$LEA

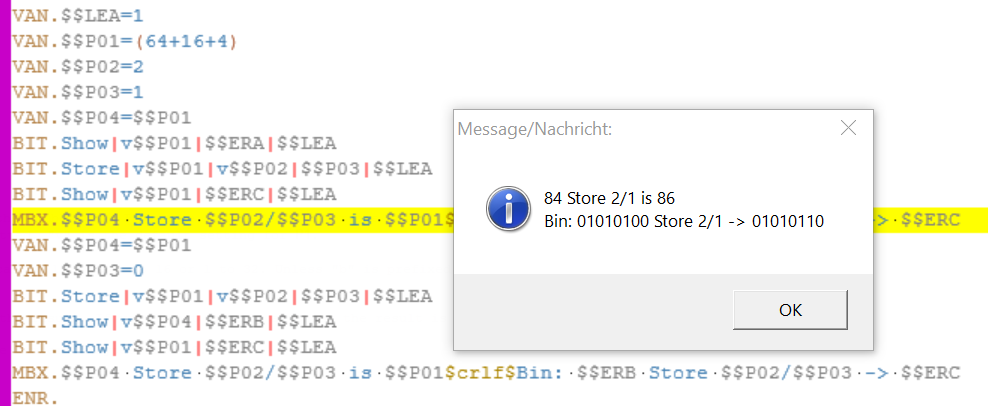

MBX.$$P04 Store $$P02/$$P03 is $$P01$crlf$Bin: $$ERA Store $$P02/$$P03 -> $$ERC
VAN.$$P04=$$P01
VAN.$$P03=0
BIT.Store|v$$P01|v$$P02|$$P03|$$LEA
BIT.Show|v$$P04|$$ERB|$$LEA
BIT.Show|v$$P01|$$ERC|$$LEA
MBX.$$P04 Store $$P02/$$P03 is $$P01$crlf$Bin: $$ERB Store $$P02/$$P03 -> $$ERC
ENR.
Syntax
BIT.Store|[b/v]P1|[b/v]P2|P3[|P4]
Parameter Explanation
P1 - Variable containing a value or binary number, will also contain the result. For example take the Number "9". It can be an ASC-Code "9" or the numeric number "9".
You can define this with a prefix of "v" for value and "b" for "binary". If the prefix is omitted, "v" is the default setting for P1.
P2 - Variable containing a value or binary number for the bit to get. Depending on P4 this number can be 1 to 8, 1 to 16 or 1 to 32. Unless "b" is prefixed the default type for P2 is "value".
P3 - Variable or "0" or "1". P3 will decide whether the Command will "set" or "clear" the specified Bit.
P4 - optional, can be 1,2 or 4. Number of Bytes that are used internally. The number of Bits is the number of Bytes times 8.
1 - 8 Bits
2 - 16 Bits
4 - 32 Bits
Do not use the "8" Option. See Limitations below.
Example
'*****************************************************
' EXAMPLE 1:
'*****************************************************
VAN.$$LEA=1
VAN.$$P01=(64+16+4)
VAN.$$P02=2
VAN.$$P03=1
VAN.$$P04=$$P01
BIT.Show|v$$P01|$$ERA|$$LEA
BIT.Store|v$$P01|v$$P02|$$P03|$$LEA
BIT.Show|v$$P01|$$ERC|$$LEA
MBX.$$P04 Store $$P02/$$P03 is $$P01$crlf$Bin: $$ERA Store $$P02/$$P03 -> $$ERC
VAN.$$P04=$$P01
VAN.$$P03=0
BIT.Store|v$$P01|v$$P02|$$P03|$$LEA
BIT.Show|v$$P04|$$ERB|$$LEA
BIT.Show|v$$P01|$$ERC|$$LEA
MBX.$$P04 Store $$P02/$$P03 is $$P01$crlf$Bin: $$ERB Store $$P02/$$P03 -> $$ERC
ENR.
Remarks
-
Limitations:
When using the "|8" Parameter, the lower 4 bits are possibly wrong. This is not a bug its due to the way variables are stored internally.
Therefore we recommend to not use this option.
