MiniRobotLanguage (MRL)
ICC.If Color Condition
NCC.If NOT Color Condition
Get a Pixel from an IR and test the Pixel-Color-Value about R,G and B values
Intention
These commands will take 2 Color-Values for R,G and B value. The first in the "Minimum" and the second is the "Maximum".
So the Colour of the specified Pixel must be inside this RGB Range then the Condition will evaluate to "true".
So the Command does this:
1. Read the specified Pixel from the IR.
2. Split the Pixelcolor into R,G and B values
3. Check if all 3 values (R,G and B) are inside the given range
If that is the case then the ICC. will evaluate "true" and NCC: will evaluate "false".
Here is a Sample Script that will remove unwanted Artefacts - for example here a watermark - from a picture.
->
And here is the Script:
Pixelprocessing: "Pixel by Pixel" using the ICC.-Command.
The structure of this Script is easy to understand and it can be modified for any case.
VAN.$$TIM=#time#
ANA.Load|0|$$PIA
ANA.GetRes|0|$$XSZ|$$YSZ
$$PIX=&HFFFFFF
FOR.$$YPO|0|$$YSZ
PRT.$$YPO/$$YSZ
FOR.$$XPO|1|$$XSZ
ICC.0|$$XPO|$$YPO|&HD0|0|&HD0|0|&HD0|0
ANA.Setpixelcolor|0|$$XPO|$$YPO|$$PIX
EIF.
ICC.0|$$XPO|$$YPO|&HC0|&HF0|&HA9|&HE0|&HB9|&HE9
ANA.Setpixelcolor|0|$$XPO|$$YPO|$$PIX
EIF.
NEX.
NEX.
CAL.$$TIM=#time#-$$TIM
MBX.Used Time in Seconds: $$TIM
ANA.Show|0!
ANA.Save|0|$$PIB
ENR.

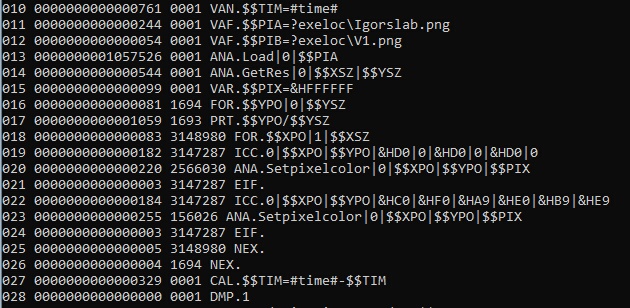

Speed-Dump, total Time used: 309 Seconds:
' You can use the Color Condition Registers to work with less Parameters inside the Loop
' this may speed up the process.
VAN.$$TIM=#time#
ANA.Load|0|$$PIA
ANA.GetRes|0|$$XSZ|$$YSZ
$$PIX=&HFFFFFF
SRG.all|&HD0|0|&HD0|0|&HD0|0|0
SRG.all|&HC0|&HF0|&HA9|&HE0|&HB9|&HE9|1
FOR.$$YPO|0|$$YSZ
PRT.! $$YPO/$$YSZ
FOR.$$XPO|1|$$XSZ
ICC.0|$$XPO|$$YPO|0
ANA.Setpixelcolor|0|$$XPO|$$YPO|$$PIX
EIF.
ICC.0|$$XPO|$$YPO|1
ANA.Setpixelcolor|0|$$XPO|$$YPO|$$PIX
EIF.
NEX.
NEX.
DMP.1
CAL.$$TIM=#time#-$$TIM
MBX.Used Time in Seconds: $$TIM
ANA.Show|0!
ANA.Save|0|$$PIB
ENR.

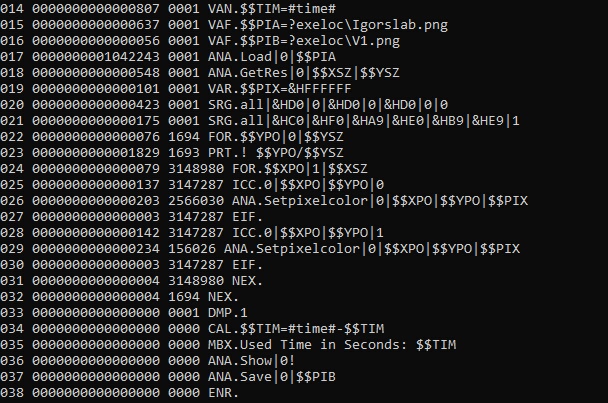

Speed-Dump, total Time used: 216 Seconds:
Syntax
ICC.P1|P2|P3|P4|P5|P6|P7|P8|P9 ... ELS. ..EIF
NCC.P1|P2|P3|P4|P5|P6|P7|P8|P9 ... ELS. ..EIF
or you can use CCR (Color Condition Register)
ICC.P1|P2|P3|P4 ... ELS. ..EIF
NCC.P1|P2|P3|P4 ... ELS. ..EIF
Parameter Explanation
P1 - Image Register Number
P2 - X-Coordinate for the Pixel to read in the Image-Register
P3 - Y-Coordinate for the Pixel to read in the Image-Register
Syntax I
P4 /P5 - (numeric) Min./Max. Values for Red, can be from 0 to 255 or in Hexadezimal from 0 to &HFF. If you write "0" in the Max-Field, it will be replaced with 255 (&HFF).
P6 /P7 - (numeric) Min./Max. Values for Green, can be from 0 to 255 or in Hexadezimal from 0 to &HFF. If you write "0" in the Max-Field, it will be replaced with 255 (&HFF).
P8 /P9 - (numeric) Min./Max. Values for Blue, can be from 0 to 255 or in Hexadezimal from 0 to &HFF. If you write "0" in the Max-Field, it will be replaced with 255 (&HFF).
Syntax II
P4 - opt. Color Condition Register Number (default 0). The Color Condition Register must be set using the SRG. - Command
Example
See above.
Remarks
The ICC.-Commands is fast. It will use only about 185 Ticks per Pixel. Therefore the Robot could execute it more then >85000 times per Second.
Limitations:
-
See also:
• RIC. Replace If Color Condition
