MiniRobotLanguage (MRL)
PIS.GetHandle Command
Get the Window-Handle from the Buttonbar
Intention
The PIS.GetHandle -Command will return the Window-Handle from the specified Buttonbar.
Using P2 you can specify a number from 1 to (number of buttons) to get the Windowhandle from that Button.
The result is always placed on TOS.

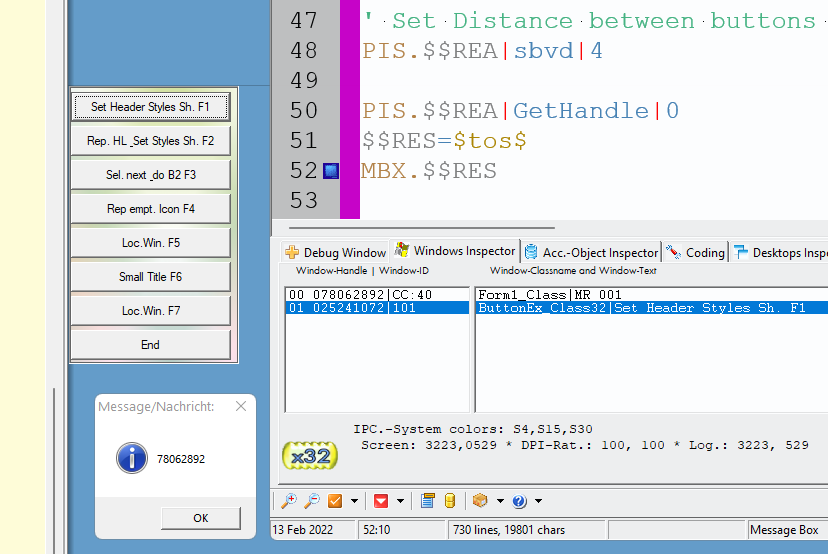

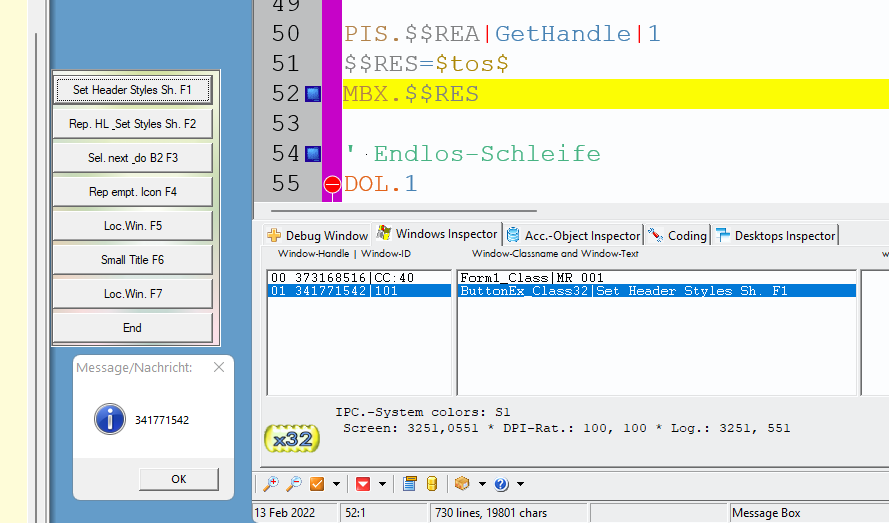

Get Windowhandle from Buttonbar (Tophandle) Get Windowhandle from Buttonbar (Handle from Button 1)
Syntax
PIS.P1|GetHandle|P2
PIS.P1|gH|P2
Parameter Explanation
P1 - Variable which contains the PlugIn Index-No.
P2 - Button Number, starting with "1" to get the Button-Windowhandle, if omitted or 0, the returned handle is from the Top-Window of the Buttonbar
The result is always placed on TOS.
Example
'*********************************
' Vertical Plugin-Sample
'*********************************
'
'SPR Script-file: New Script_1
'Purpose:
'Author:
'Creation date: 02-08-2022 at 07:53:12
'===========================================================
'#EXE:?path\
'#SPI:ForceWrite
' This will run the NoLimits2 in case its not yet running
GSB.RunIt
'SWP.700,498|1612,165|T
' Return PlugIn Index Number
PIL.$$REA|01
' Set Button-Number
VAN.$$BUN=8
PIS.$$REA|sbn|$$BUN
' use any window to attach the plugin
PIS.$$REA|sbhd|4
' Plugin vertikal anordnen
PIS.$$REA|sv
' Make the PlugIn visible
PIS.$$REA|show
' attach the Plugin to the window
PIS.$$REA|attach|$$ULT|2|2
$$HSI=160
$$VSI=30
PIS.$$PIN|sbhvs|$$HSI|$$VSI
' Set Button Text
FOR.$$LO2|1|$$BUN
PIS.$$REA|sBt|$$LO2|Btn. F$$LO2
NEX.
PIS.$$REA|sBt|$$BUN|End
PIS.$$REA|sBt|1|Set Header Styles Sh. F1
PIS.$$REA|sBt|2|Rep. HL & Set Styles Sh. F2
PIS.$$REA|sBt|3|Sel. next & do B2 F3
PIS.$$REA|sBt|4|Rep empt. Icon F4
PIS.$$REA|sBt|5|Loc.Win. F5
PIS.$$REA|sBt|6|Small Title F6
PIS.$$REA|sBt|7|Loc.Win. F7
' Set Distance between buttons (vertical in Points)
PIS.$$REA|sbvd|4
PIS.$$REA|GetHandle|1
$$RES=$tos$
MBX.The handle is $$RES
' Endlos-Schleife
DOL.1
PIW.$$REA|§§BTN|4
ITO.
PAU.0.1
GTO.MLop
EIF.
' Button wurde geklickt oder Mouseover
GSB.react
:MLop
OOP.
PAU.2
:enz
END.
'-----------------------------------------------------------
' Starte NL2
:RunIt
$$PRO=HELPMAN.EXE
NEP.$$PRO
STW.wctgX|0|TFrmHelpMan|Help+Manual|Locate_First
ELS.
GTO.Locate_First
EIF.
SAV.Save|$$FIL|$$PAT
IAI.Help+Manual 8|s
$$FIL=$$001
BLB.$$FIL|$$FIL
BLB.$$FIL|$$FIL
VBT.$$FIL
VBT.$$FIL|"
$$FIN=$$FIL\$$PRO
DBP.$$FIN
NEF.$$FIN
$$ERO=HM8 nicht gefunden
GTO.Error
EIF.
EXE.$$FIN
PAU.3
GTO.RunIt
ELS.
$$ERO=HM8 nicht installiert.
GTO.Error
EIF.
SAV.Restore
:Locate_First
STW.ctw|TFrmHelpMan|Help+Manual|45
'SWP.700,498|1612,165|T
HTV.$$ULT
SCW.nct|1|TdxHMRibbon|{&NOTEXT:}
HTV.$$RIB
RET.
'-----------------------------------------------------------
:react
' Get Button number out of $$RET into §§TMA
SBD.§§BTN|$sp$|1|§§TMA
' Button Action into §§TMB
SBD.§§BTN|$sp$|2|§§TMB
'PRT. Button pressed: §§TMA
'PRT. Action-code: §§TMB
GSB.TestMo
' react on Buttonpress
IVS.§§TMB=!P!
SCS.§§TMA
CAN.$$BUN
JSR.doEnd
CAN.1
JSR.doButton01
CAN.2
JSR.doButton02
CAN.3
JSR.doButton03
CAN.4
JSR.doButton04
CAN.5
JSR.doButton05
CAN.6
JSR.doButton06
CAN.7
JSR.doButton07
CAE.
MBX.Button-Number: §§TMA is not defined.
: $$RET=
ESC.
EIF.
RET.
'-----------------------------------------------------------
' Do Button 1
'-----------------------------------------------------------
:doButton01
GSB.Set_Style_Headline
GSB.Set_Style_Sub_Headline
GSB.Set_Style_right_Sub_Headline
'
GSB.WaitShift
GSB.Locate_below_Selected
PAU.1
MLM.
GSB.Move_Mouse_To_B1
RET.
'-----------------------------------------------------------
' Do Button 2
'-----------------------------------------------------------
:doButton02
GSB.Mark_Headline
SDK.^v
GSB.Mark_Headline
PAU.0.5
GSB.Open_Style_Menu
GSB.Set_Font_Style|Heading1
GSB.Set_Style_Sub_Headline
GSB.Set_Style_right_Sub_Headline
'
GSB.WaitShift
GSB.Locate_below_Selected
PAU.0.25
MLM.
GSB.Move_Mouse_To_Button|2
RET.
'-----------------------------------------------------------
' Do Button 3
'-----------------------------------------------------------
' Jump to next and then Replace Headers
:doButton03
GSB.Locate_below_Selected
PAU.1
MLM.
PAU.1
WII.6
GSB.Mark_Headline
SDK.^v
GSB.Mark_Headline
PAU.0.5
GSB.Open_Style_Menu
GSB.Set_Font_Style|Heading1
GSB.Set_Style_Sub_Headline
GSB.Set_Style_right_Sub_Headline
'
GSB.Move_Mouse_To_Button|3
RET.
'-----------------------------------------------------------
' Do Button 4
'-----------------------------------------------------------
:doButton04
GSB.Locate_false_Icon
GSB.Locate_Icon_change_Menu
GSB.Locate_right_Icon
GSB.Move_Mouse_To_Button|4
RET.
'-----------------------------------------------------------
' Do Button 5
'-----------------------------------------------------------
:doButton05
FOR.$$LL5|1|8
GSB.doButton03
PAU.1
IEK.LSHIFT
ENR.
EIF.
NEX.
GSB.Move_Mouse_To_Button|5
RET.
'-----------------------------------------------------------
' Do Button 6
'-----------------------------------------------------------
:doButton06
GSB.Do_Mark_MRL
GSB.Set_Style_Small_Page_Title
GSB.Locate_Topline_Start
MLC.
GSB.Move_Mouse_To_Button|6
RET.
'-----------------------------------------------------------
' Do Button 7
'-----------------------------------------------------------
:doButton07
GSB.Locate_TW
GSB.Move_Mouse_To_Button|7
RET.
'-----------------------------------------------------------
:TestMo
' react on Mouseover
IVS.§§TMB=!M!O!
'
GTO.MOut
EIF.
' react on Mouse-Leaves Button Area
IVS.§§TMB=!M!L!
'
GTO.MOut
EIF.
RET.
' On Mouseover return directly to Mainloop (RET.2)
:MOut
RET.2
'-----------------------------------------------------------
:doEnd
END.
'-----------------------------------------------------------
:Error
MBX.$$ERO
GTO.doEnd
ENR.
'===========================================================
' These Subprogramms are unused
:GetMousePos
GSB.WaitShift
GMP.mw|§§POS
PRT.Mouse is: §§POS
RET.
'-----------------------------------------------------------
:WaitShift
WNK.
:Laba
IEK.LSHIFT
GTO.WSOut
ELS.
PAU.0.1
GTO.Laba
EIF.
:WSOut
RET.
'-----------------------------------------------------------
:Locate_TW
IEW.$$ULT
STW.h|$$ULT
ELS.
STW.ct|TFrmHelpMan|Help+Manual
HTV.$$ULT
SWP.1090,130|1414,1665|T
EIF.
RET.
'-----------------------------------------------------------
:Open_Style_Menu
GSB.Locate_TW
'SWP.1666,287|297,93|T
'MMV.t|428,125
SCW.nct|1|TdxHMRibbon|{&NOTEXT:}
SCW.nct|1|TdxRibbonGroupsDockControlSite|{&NOTEXT:}
SCW.nct|1|TdxRibbonGroupsDockControl|{&NOTEXT:}
SCW.nct|1|TdxRibbonGroupBarControl|Schriftart
MLI.w|117,61
WII.
PAU.0.1
RET.
'-----------------------------------------------------------
:Set_Font_Style
$$STL=§§_01
STW.Ac|TdxBarDropdown
AGR.34!WII.MOS.|$$STL||1|3|60
RET.
'-----------------------------------------------------------
:Do_Mark_MRL
GSB.Locate_Small_MRL
SKP.{END}
KYD.{LSHIFT}
SKP.{HOME}
KYU.{LSHIFT}
PAU.1
RET.
'-----------------------------------------------------------
:Do_Mark_Line
GSB.Locate_TW
SKP.{HOME}
KYD.{LSHIFT}
SKP.{END}
KYU.{LSHIFT}
PAU.1
RET.
'-----------------------------------------------------------
'-----------------------------------------------------------
:Locate_Headline
GSB.Locate_TW
MLI.t|584,249
RET.
'-----------------------------------------------------------
:Locate_Sub_Headline
GSB.Locate_TW
MLI.t|835,300
RET.
'-----------------------------------------------------------
:Locate_right_Sub_Headline
GSB.Locate_TW
MLC.t|1126,298
RET.
'-----------------------------------------------------------
:Mark_Headline
GSB.Locate_Headline
SDK.^a
'GSB.WaitShift
RET.
'-----------------------------------------------------------
:Mark_Sub_Headline
GSB.Locate_Sub_Headline
SDK.^a
'GSB.WaitShift
RET.
'-----------------------------------------------------------
:Mark_right_Sub_Headline
GSB.Locate_right_Sub_Headline
SDK.^a
'GSB.WaitShift
RET.
'-----------------------------------------------------------
:Mark_Full_Sub_Headline
GSB.Locate_Sub_Headline
SDK.^a
SDK.^a
'GSB.WaitShift
RET.
'-----------------------------------------------------------
:Set_Style_Line_Style
GSB.Open_Style_Menu
GSB.Set_Font_Style|LineStile
RET.
'-----------------------------------------------------------
:Set_Style_Small_Page_Title
GSB.Open_Style_Menu
GSB.Set_Font_Style|Small Page Title
RET.
'-----------------------------------------------------------
:Set_Style_Headline
GSB.Mark_Headline
GSB.Open_Style_Menu
GSB.Set_Font_Style|Heading1
RET.
'-----------------------------------------------------------
:Set_Style_Sub_Headline
GSB.Mark_Sub_Headline
GSB.Open_Style_Menu
GSB.Set_Font_Style|Heading2
RET.
'-----------------------------------------------------------
:Set_Style_right_Sub_Headline
GSB.Mark_right_Sub_Headline
GSB.Open_Style_Menu
GSB.Set_Font_Style|Heading3
RET.
'-----------------------------------------------------------
:Move_Mouse_To_Button
$$STL=§§_01
VBT.$$STL
$$TXT=F$$STL
STW.ct|Form1_Class|MR
SCW.ct|ButtonEx_Class32|$$TXT
MPO.
RET.
'-----------------------------------------------------------
:Move_Mouse_To_B1
GSB.Move_Mouse_To_Button|1
RET.
'-----------------------------------------------------------
:Move_Mouse_To_B2
GSB.Move_Mouse_To_Button|2
RET.
'-----------------------------------------------------------
'
'-----------------------------------------------------------
:Locate_selected_TV_Element
' Code removed
RET.
'-----------------------------------------------------------
:Locate_below_Selected
' Code removed
RET.
'-----------------------------------------------------------
:Locate_false_Icon
' Code removed
RET.
'-----------------------------------------------------------
:Locate_Icon_change_Menu
' Code removed
RET.
'-----------------------------------------------------------
:Locate_right_Icon
' Coder removed
RET.
'-----------------------------------------------------------
:Locate_Small_MRL
' Code removed
RET.
'-----------------------------------------------------------
:Locate_Topline_Start
' Code removed
RET.
'-----------------------------------------------------------
ENR.
Remarks
You can use up to 5 Plugins at the same time.
Just start them, each will get another Index.
To communicate with each PlugIn, you just give the PlugIn-Index to each command.
Button-Colors and transparency:
Please note that if you set Buttons transparent, that they can not have a background-color at the same time.
To set multiple Buttontext at once you can use:
PIS.$$PIN|sbt|all|Button %n
The "%n" is replaced with the number of that button.
The "all" and %n-scheme will also work with most other commands, where it makes sense.
Limitations:-
-
