MiniRobotLanguage (MRL)
XML.Get Start End Tags
XML.gse
Get Stat-/End-Tag position of actual Position's Tag
Intention
This command is used to get the Start- and End-Position of the XML-Data Block at the actual position. Thhs command will return the Start- and End-Tag that corresponds together.
Example:
<Tag_A>
<Tag_B>
Content
</Tag_B>
</Tag_A>
If we are in Tag_A then we will get the position of the bold marked Characters of the XML-Data. This command is very useful if you want to retrieve a complete part of the XML-Data.
See also gbl - Get Block to retrieve directly the content inside the Start- and End-Tags..
Syntax
XML.Get Start End Tags[|P2][|P3]
Parameter Explanation
P2 - (optional) Variable to return the start-byte of the Tag.
P3 - (optional) Variable to return the end-byte of the Tag.
Example
'***********************************
'
'***********************************
'
$$XMF=?pfad\Small_XML.txt
NEF.$$XMF
MBX.File $$XMF was not found!
GTO.enx
EIF.
' Now we are going to parse it
XML.Load File|$$XMF
' We check if there are errors
JIT.Lab_Err
' We get the "actual position" - after parsing.
XML.get pos|$$POS
PRT.Actual Position after Parsing is: $$POS
PRT.------------------------
XML.goto first node
' We use a Hi-Level Search here.
XML.sdn|SURLS
XML.get pos|$$POS
PRT.Actual Position after search is: $$POS
PRT.------------------------
XML.gse|$$STA|$$END
PRT.Start-Tag Position is: $$STA
PRT.End-Tag Position is: $$END
PRT.Start-Tag Position is: $$STA
PRT.End-Tag Position is: $$END
PRT.------------------------
PRT. We are going to Dump these Bytes
XML.Dump|$$STA-1|($$STA+6)
PRT.------------------------
PRT. We are going to Dump these Bytes
XML.Dump|$$END-1|($$END+6)
PRT.------------------------
MBX.!
:enx
ENR.
'-----------------------------------------------------------
' Error Handler
:Lab_Err
XML.get error|$$ERT
DBP.$$ERT
ENR.

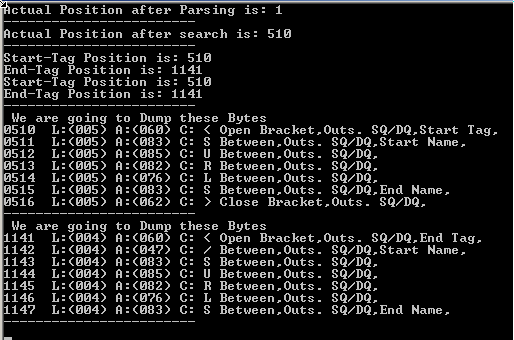

This is the result of the sample script:
Remarks
-
Limitations:
-
See also:
