MiniRobotLanguage (MRL)
XML.Set XML Part
XML.sxp
Remove/Replace Text at a specified place of the XML-Data (and reparse if needed)
Intention
This command is used to change parts of the XML-Data.
You can replace XML-Parts with other parts.
If you just want to remove a part of the XML-Data, then leave P4 empty.
If you do change the total length of the XML-Data then the Parser will automatically re-parse the data and set all flags from new.
If you do not change the total length of the XML-Data then its up to you, if you want a Re-Parse or not.
See the command: rpa - Reparse .
Syntax
XML.Set XML Part|P2|P3|P4
Parameter Explanation
P2 - numeric Start-position of the text that is going to be replaced with
the new text in P4. If zero, XML-Root is taken.
If negative, it will count position from the end of the XML-Data backwards.
P3 - numeric End-position of the text that is going to be replaced with
the new text in P4. If zero, XML-Length is used.
If negative, it will count position from the end of the XML-Data backwards.
P3 must always be larger then P2.
P4 - Text that is inserted, replacing the text in the XML-Data that
is between P2 and P3.
Example
'***********************************
'
'***********************************
'
$$XMF=?pfad\SQ_XML.txt
NEF.$$XMF
MBX.File $$XMF was not found!
GTO.enx
EIF.
' Now we are going to parse it
XML.Load File|$$XMF
' We check if there are errors
JIT.Lab_Err
' We get the "actual position" - after parsing.
XML.get pos|$$POS
PRT.Actual Position after Parsing is: $$POS
' Hier gehts los
PRT.------------------------
XML.sdn|&EXACT:SURLS
XML.get pos|$$POS
PRT.Actual Position is: $$POS
XML.gbl|$$BSA|$$BSE
PRT.Current Block starts at: $$BSA
PRT.Current Block ends at: $$BSE
PRT.------------------------
PRT.This is the block before change:
PRT.------------------------
XML.Print
PRT.------------------------
PRT.Now we use Set-XML-Part to change the block
$$TXT=!!!!!!!! New Block-Text !!!!!!!!!!
XML.sxp|$$BSA|$$BSE|$$TXT
PRT.------------------------
XML.Print
PRT.------------------------
PRT. In this case the Reparse was done internally.
PRT.------------------------
PRT.Now we will make a character change in the XML-Data
XML.scr|$$BSA|>
XML.ReParse
PRT.------------------------
XML.Print
PRT.------------------------
PRT. We Dump Positions
XML.Dump|($$BSA-3)|($$BSA+3)
PRT.------------------------
XML.Dump|($$BSB-3)|($$BSB+3)
MBX.!
:enx
ENR.
'-----------------------------------------------------------
' Error Handler
:Lab_Err
XML.get error|$$ERT
DBP.$$ERT
ENR.

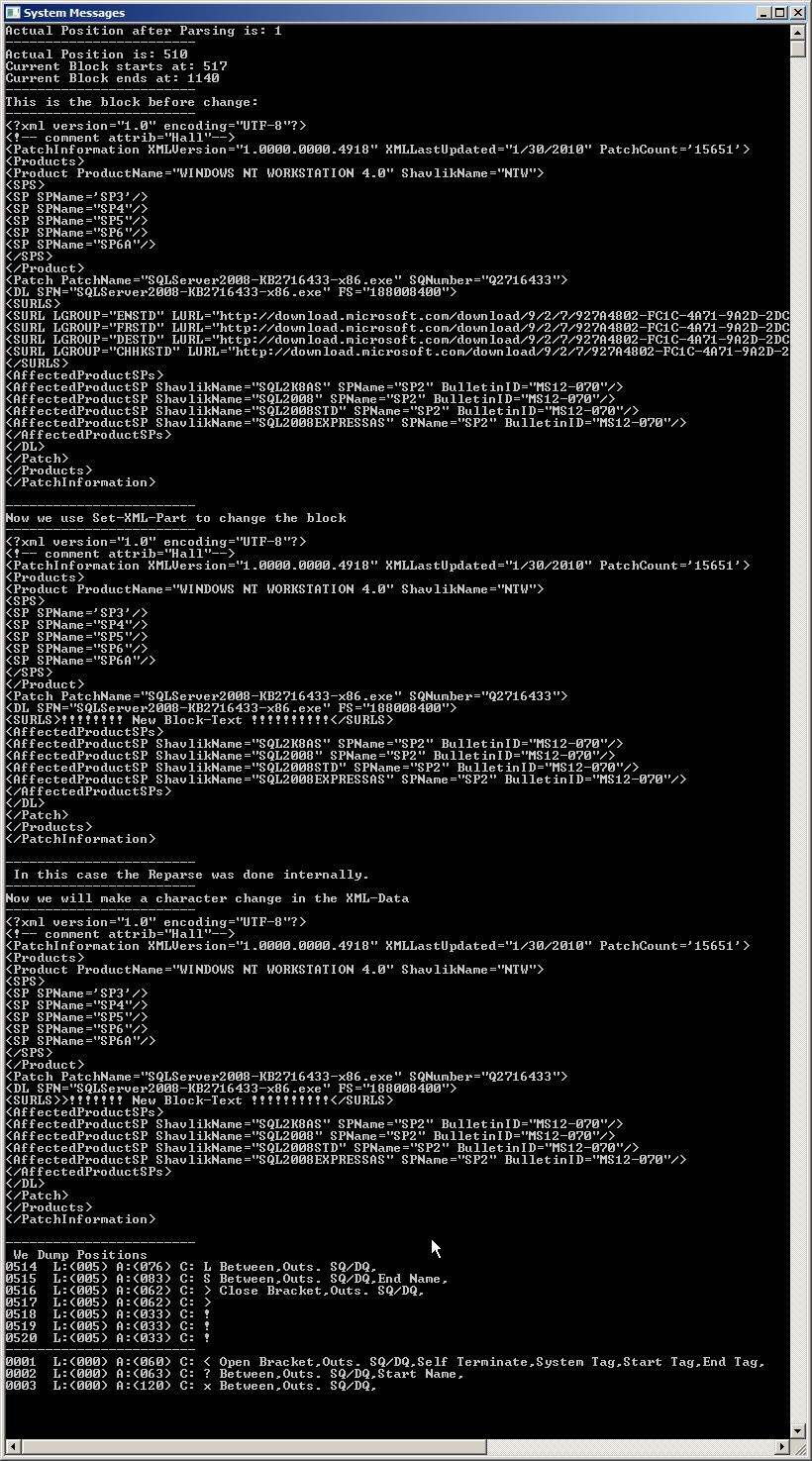

This is the result of the sample script:
Remarks
-
Limitations:
-
See also:
• ! Smart Package Robot 's XML-Features
• XML. - eXtended Markup Language
•
