MiniRobotLanguage (MRL)
XML.Set Chr
XML.scr
Change a Byte in the XML-Data to a specified Character
Intention
This command is used to change a Single Character inside the XML-Data to a specified other character.
You may need a Reparse, if this change will influence the XML-Structure.
Reparse is done using: rpa - Reparse
' These lines are doing the same thing:
' as 62=ASCII of ">"
XML.scr|$$BSA|>
XML.ssc|$$BSA|62
Hints:
To specify an ASCII Value instead of a CHaracter, use:
To replace whole words or Data-Blocks, use
Syntax
XML.Set Chr|P2[|P3]
Parameter Explanation
P2 - (optional) numeric Byte address of the XML-Data Byte that
should be taken as position. If zero, the actual position is taken.
P3 - (optional) Variable with just one character that is been placed inside the
XML-Data at the position which is specified in P2.
Example
'***********************************
'
'***********************************
'
$$XMF=?pfad\SQ_XML.txt
NEF.$$XMF
MBX.File $$XMF was not found!
GTO.enx
EIF.
' Now we are going to parse it
XML.Load File|$$XMF
' We check if there are errors
JIT.Lab_Err
' We get the "actual position" - after parsing.
XML.get pos|$$POS
PRT.Actual Position after Parsing is: $$POS
' Hier gehts los
PRT.------------------------
XML.sdn|&EXACT:SURLS
XML.get pos|$$POS
PRT.Actual Position is: $$POS
XML.gbl|$$BSA|$$BSE
PRT.Current Block starts at: $$BSA
PRT.Current Block ends at: $$BSE
PRT.------------------------
PRT.This is the block before change:
PRT.------------------------
XML.Print
PRT.------------------------
PRT.Now we use Set-XML-Part to change the block
$$TXT=!!!!!!!! New Block-Text !!!!!!!!!!
XML.sxp|$$BSA|$$BSE|$$TXT
PRT.------------------------
XML.Print
PRT.------------------------
PRT. In this case the Reparse was done internally.
PRT.------------------------
PRT.Now we will make a character change in the XML-Data
XML.scr|$$BSA|>
XML.ReParse
PRT.------------------------
XML.Print
PRT.------------------------
PRT. We Dump Positions
XML.Dump|($$BSA-3)|($$BSA+3)
PRT.------------------------
XML.Dump|($$BSB-3)|($$BSB+3)
MBX.!
:enx
ENR.
'-----------------------------------------------------------
' Error Handler
:Lab_Err
XML.get error|$$ERT
DBP.$$ERT
ENR.
ENR.

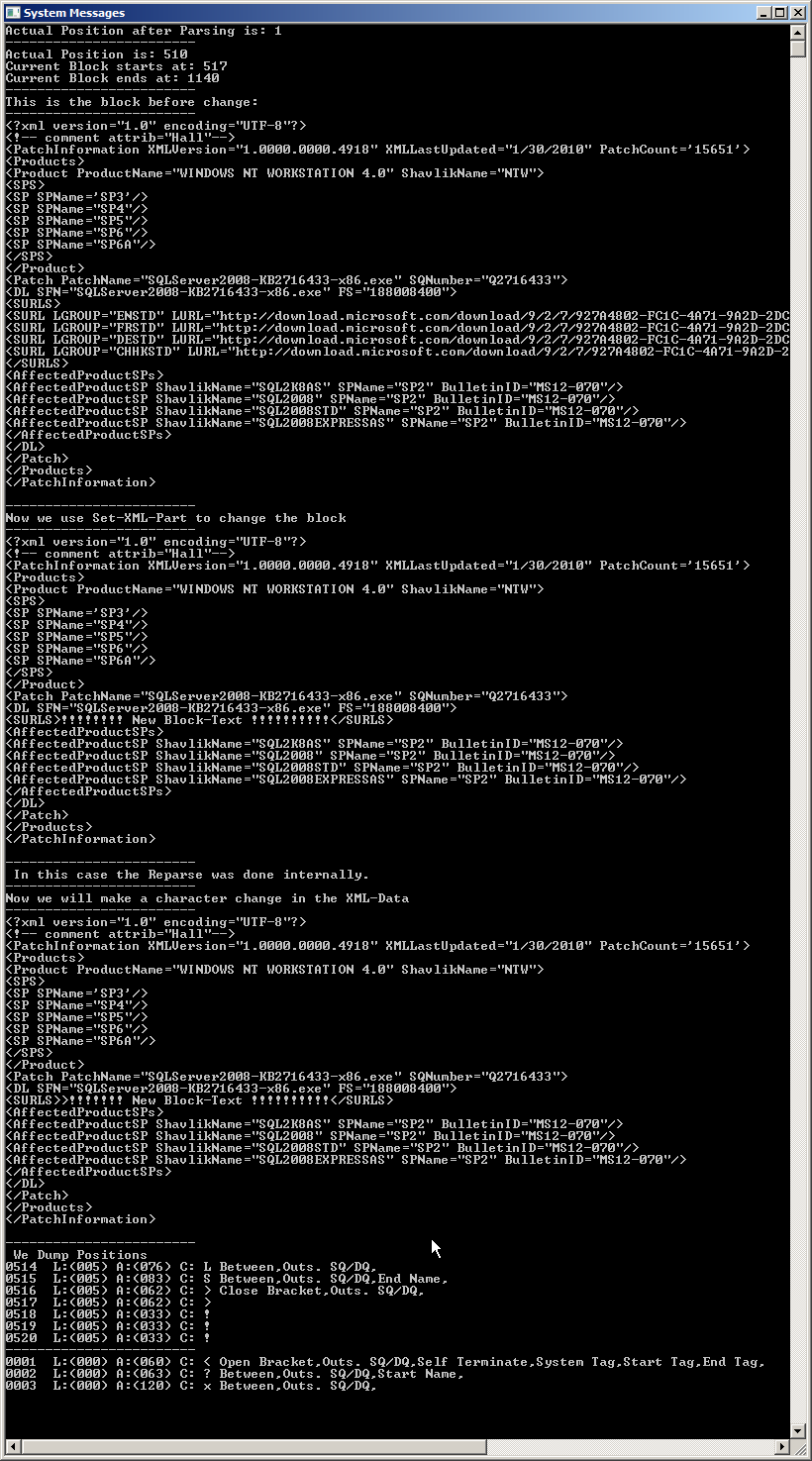

This is the result of the sample script:
Remarks
-
Limitations:
-
See also:
• ! Smart Package Robot 's XML-Features
• XML. - eXtended Markup Language
•
