MiniRobotLanguage (MRL)



XML.Set Position

XML.spo

Manually set the actual position (pointer to actual position)





Intention



This command is used to set the actual position to y byte-position in the XML-Data, that starts at (Byte Nr.) 1 and goes up to Byte Nr. "XML-Length".



You can specify a negative position, in this case, the bytes are counted reverse, starting at the end of the XML-Data, that is XML-Length.



-1 = Byte "XML-Lenght",

-2 = "XML-Lenght"-1

-3 = "XML-Lenght"-2

etc.



To find out where the actual position is, you can use:

gpo - Get Position



Usage:



XML.Set Pos|357

' We get the "actual position" - after parsing.

XML.get pos|$$POS

PRT.Actual Position after Parsing is: $$POS









Syntax





XML.Set Position[|P2]







Parameter Explanation



P2 - (optional) numeric parameter that contains a valid position inside the XML-Data.

          If omitted or zero, the actual position is used.

          If the given number is larger then XML-Length, the number is set to XML-Length.

You can specify a negative position, in this case, the bytes are counted reverse, starting at the end of the XML-Data, that is XML-Length.



-1 = Byte "XML-Lenght",

-2 = "XML-Lenght"-1

-3 = "XML-Lenght"-2

etc.









Example



'***********************************

'

'***********************************

'

$$XMF=?pfad\Small_XML.txt

NEF.$$XMF

 MBX.File $$XMF was not found!

 GTO.enx

EIF.

' Now we are going to parse it

XML.Load File|$$XMF

' We check if there are errors

JIT.Lab_Err

XML.Set Pos|357

' We get the "actual position" - after parsing.

XML.get pos|$$POS

PRT.Actual Position after Parsing is: $$POS

' Hier gehts los

PRT.------------------------

XML.gLev

$$TXT=$$000

PRT.Actual Level are: $$TXT

PRT.------------------------

XML.gLev|($$POS+1)|$$ERG

PRT.Actual Level: $$ERG

PRT.------------------------

XML.Dump|($$POS-3)|($$POS+3)

PRT.------------------------

MBX.!

:enx

ENR.

'-----------------------------------------------------------

' Error Handler

:Lab_Err

XML.get error|$$ERT

DBP.$$ERT

ENR.

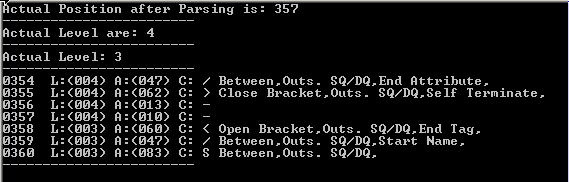

This is the result of the sample script:













Remarks



-







Limitations:



-





See also:



•   ! Smart Package Robot 's XML-Features

•   ! SPR - XML-Parser Flags

•   XML. - eXtended Markup Language

•   par - parse from var

•   gpo - Get Position

•   gtr - Goto Root

•   gfn - Get First Node
