MiniRobotLanguage (MRL)



XML.Split Attrib at

XML.spa

Split attribute at actual position into name and value





Intention



This command is used to split an attribute at the current position into name and value.

For this command you need to have the actual position inside of an attribute name.



For this you can use the

•     abm - Attrib by Number

•     abn - Attrib by Name

•     abv - Get Attrib by Value



After these commands, the actual position is on the attributes End.

To get back to the start of the attribute, use:



XML.siu|start attribute



This will set the actual position to the start of the attribute.Then you can use



XML.spa



Unlike XML.spl you do not give a text string as parameter, but just two variables that will be filled with the name and value of the attribute at the actual position.



Technically the command will look for a "start attribute"-Flag upwards first.

If one is found, that attribute will be taken. If none is found, the command will search an attribute in downward direction. All of these must be inside the Tag at the actual position. This command will not search into other tags, outside of the Tag at the actual position.







Syntax





XML.Split Attrib at[|P2][|P3]







Parameter Explanation



P2 - (optional) Variable to return the name of the attribute. If omitted the

           result is placed on TOS.



P3 - (optional) Variable to return the value of the attribute. If omitted this

          value is placed on TOS (Top of Stack).









Example



'***********************************

'

'***********************************

'

$$XMF=?pfad\SQ_XML.txt

NEF.$$XMF

 MBX.File $$XMF was not found!

 GTO.enx

EIF.

' Now we are going to parse it

XML.Load File|$$XMF

' We check if there are errors

JIT.Lab_Err

' We get the "actual position" - after parsing.

XML.get pos|$$POS

PRT.Actual Position after Parsing is: $$POS

' Here we search ...

PRT.------------------------

XML.sna|Patch|SQNum

XML.abn|SQNum

XML.siu|start attribute

XML.get pos|$$POA

PRT.Actual Position after sdn is: $$POA

XML.spa|$$NAM|$$VAL

PRT. The attributes Name is: $$NAM

PRT. The attributes Value is: $$VAL



PRT.------------------------

XML.Dump|($$POA-3)|($$POA+24)

MBX.!

:enx

ENR.

'-----------------------------------------------------------

' Error Handler

:Lab_Err

XML.get error|$$ERT

DBP.$$ERT

ENR.

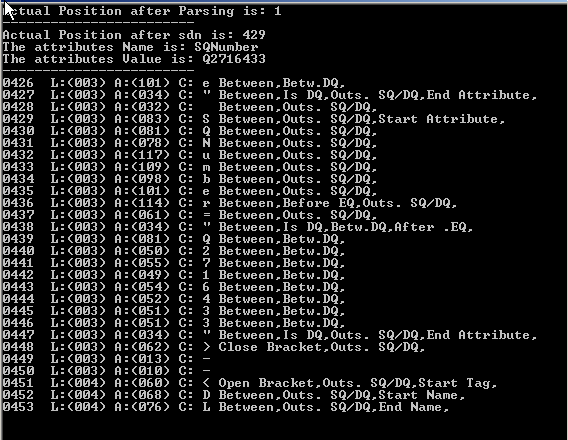

This is the result of the sample script:











Remarks



-







Limitations:



-
