MiniRobotLanguage (MRL)
ANA.New
Create new, empty Image-Register (IR) or create new IR with resized Content from other IR
Intention
This command will create a new IR with a specified resolution.
Generally the new IR will be empty (Black). If P4 is specified, then the content of IR P4 will be copied and resized to the resolution into the new IR.
1. Create new, empty IR

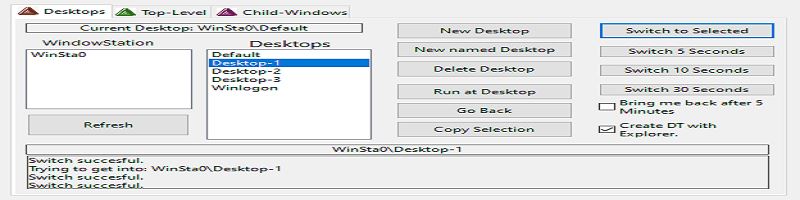

This will include all Screens on a Dual-Screen System. Here we search a Pattern on the complete Desktop.
STW.Act|FORM_DESKTOPS_MANAGER_FRMMAIN_CLASS:0|Desktops-Manager
ANA.Snap|0
ANA.show|0!
ANA.New|0|800|200
' As you can see, IR 0 is deleted and has the specified size
ANA.show|0!
ENR.
2. Create new IR and copy the resized Content of another IR
As you can see below, the Resizing will not take any Aspect-Ratio into account, but use the full X and Y Size of the new IR.
STW.Act|FORM_DESKTOPS_MANAGER_FRMMAIN_CLASS:0|Desktops-Manager
ANA.Snap|2
ANA.New|0|800|200|2
ANA.show|0!
ENR.
Syntax
ANA.New|P1|P2|P3[|P4]
Parameter Explanation
P1 - Image-Register Number for the IR that will be created. If there is Content in this IR, it will be deleted.
P2 - X-Resolution for the new IR Content
P3 - Y-Resolution for the new IR Content
P4 - opt. Image-Register Number, if specified, the Content of this IR will be resized and copied into the new IR. If omitted, an empty IR will be created.
The Command will leave a 0/1 on the TOS. As always, a 0 means Error, while a 1 means "all fine".
Example
'***********************************
' ANA.New-Sample
'***********************************
STW.Act|FORM_DESKTOPS_MANAGER_FRMMAIN_CLASS:0|Desktops-Manager
ANA.Snap|0
ANA.BlockTo|0|1|5|2
ANA.New|0|800|300|1
ANA.show|0!
ENR.
' Here you can see the result of the Operation.
Remarks
-
Limitations:
-
See also:
•
