ANA.ReplaceColorT
Replace Color with Tolerance - Replace given Colors with another Color directly in the IR, using a Tolerance-Value.
Intention
This Command will directly replace colors in an IR. It will replace Color P2 (and all COlors taht fit to P2 with given Tolerance P3) with Color P4. In Image-Register P1.
This Command is NOT really an Color-Table Operation, as it does not need the Color-Table.
Instead it will directly Replace Color P2 with Color P3 in Image-Register P1 using the Tolerance, which is given in 0-100%.
If Color P2 is prefixed with an ! then the Command will work in a negative mode, means it will replace the Color if it does NOT Fit to the Color P2.
In this Script we will replace the Black Color using a Tolerance of 10%, with Green.
ANA.Load|0|$$PIA
ANA.Show|0!
$$SRC=&H000000
$$COL=&H30FF30
ANA.ReplaceColorT|0|$$SRC|10|$$COL
DMP.Speed
ANA.Show|0!
ENR.

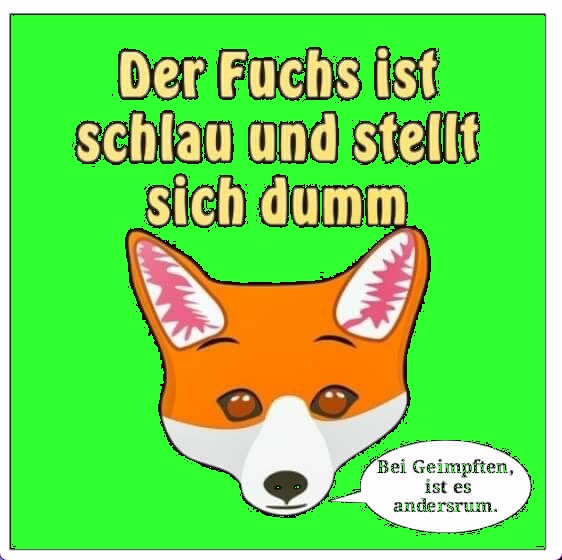

Will bring up this Messagebox.

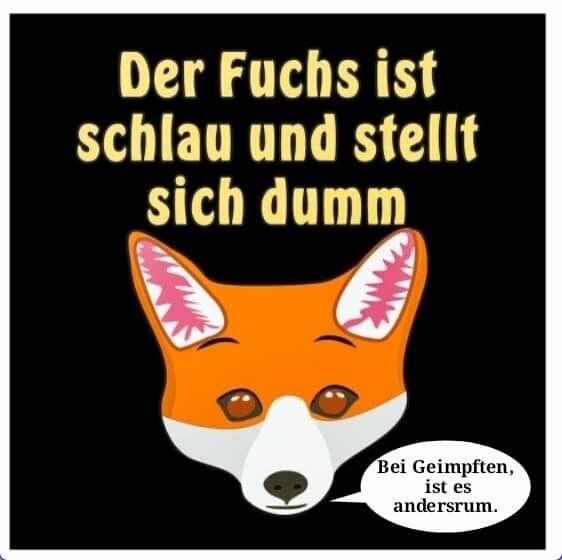

With this picture:

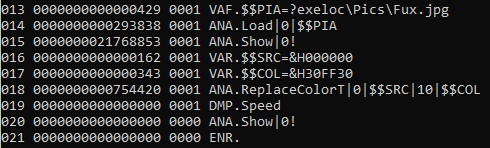

Here is the Speed-Dump:
Syntax
ANA.ReplaceColorT|P1|[!]P2[|P3][|P4]
Parameter Explanation
P1 - Source & Destination Image-Register Number, if omitted 0 is used.
P2 - Color to be replaced with Color in P3.
If Color P2 is prefixed with an ! then the Command will work in a negative mode, means it will replace the Color if it does NOT Fit to the Color P2.
P3 - Color-Tolerance Value between 0-100 which is in Percent. 0 - do not use Tolerance, 100 - Replace any color.
P4 - (opt.) Color that will replace the Color in P2, if omitted &HFFFFFF (White) is used.
The Command will leave a 0/1 on the TOS. If the Operation fails, P2 may be "0".
Example
This Example will show ANA.ReplaceColorT to make a Cleanup of a picture from a social network.
You got that Picture and it has a lot of JPG-Artefacts and the colors are not pure.
The SPR can quickly clean it up.
'***********************************
' ANA.ReplaceColorT-Sample
' Used to clean up JPG-Artefacts
' Used Sample picture are used for technical reasons and "may or may not be" the opinion of the Script / SPR-Authors.
'***********************************
NEF.$$PIA
MBX.File not found.
EIF.
ANA.Load|1|$$PIA
ANA.Load|0|$$PIA
ANA.Show|0!
'Restore red
$$SRC=&HFF0000
$$COL=&HFF0000
$$TOL=95
ANA.ReplaceColorT|0|$$SRC|$$TOL|$$COL
' Restore Blue
$$SRC=&H0000FF
$$COL=$$SRC
$$TOL=90
ANA.ReplaceColorT|0|$$SRC|$$TOL|$$COL
'Restore Black
$$SRC=&H0
$$COL=$$SRC
$$TOL=90
ANA.ReplaceColorT|0|$$SRC|$$TOL|$$COL
'Restore White
$$SRC=&HFFFFFF
$$COL=$$SRC
$$TOL=90
ANA.ReplaceColorT|0|$$SRC|$$TOL|$$COL
ANA.Show|0!
' Generate Outline
ANA.cdfxy|0|1|1
ANA.Contrast|1|15000
ANA.Invert|1
ANA.Show|1!
' IR 2 must not be empty for the MixTar Command
ANA.Copy|0|2
' Combine both
ANA.MixTar|1|0|2
DMP.1
ANA.Show|2!
ENR.
' Below you can see the result of the Operation.

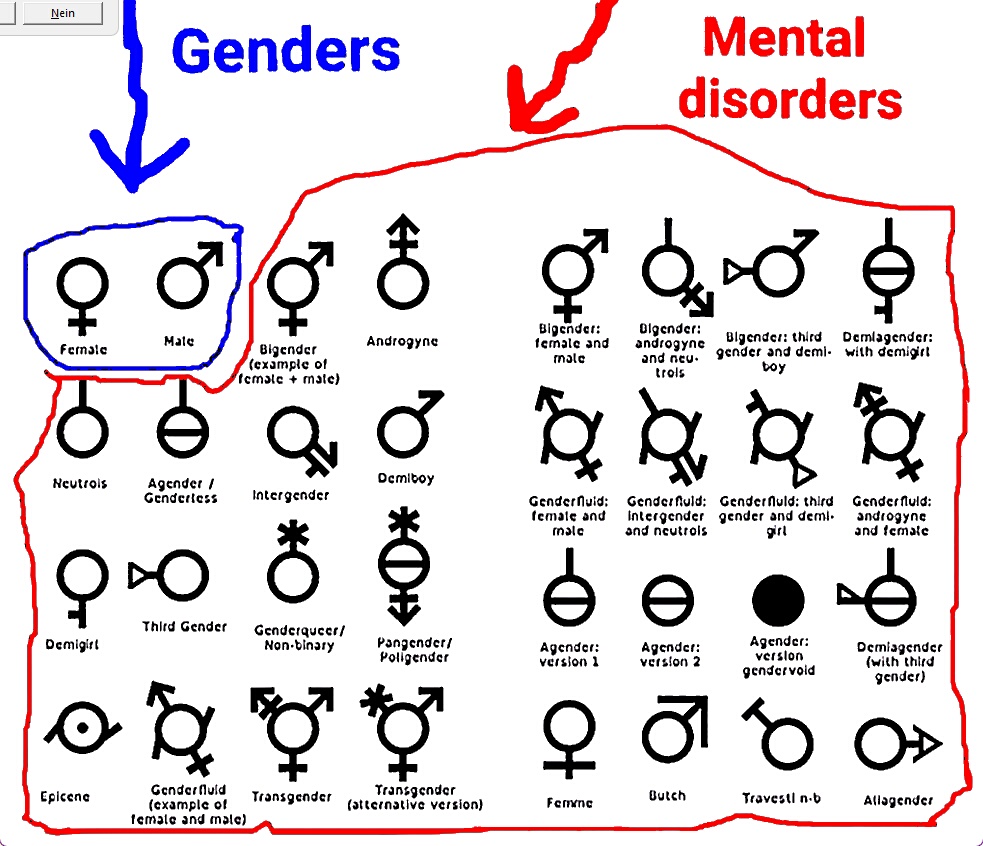

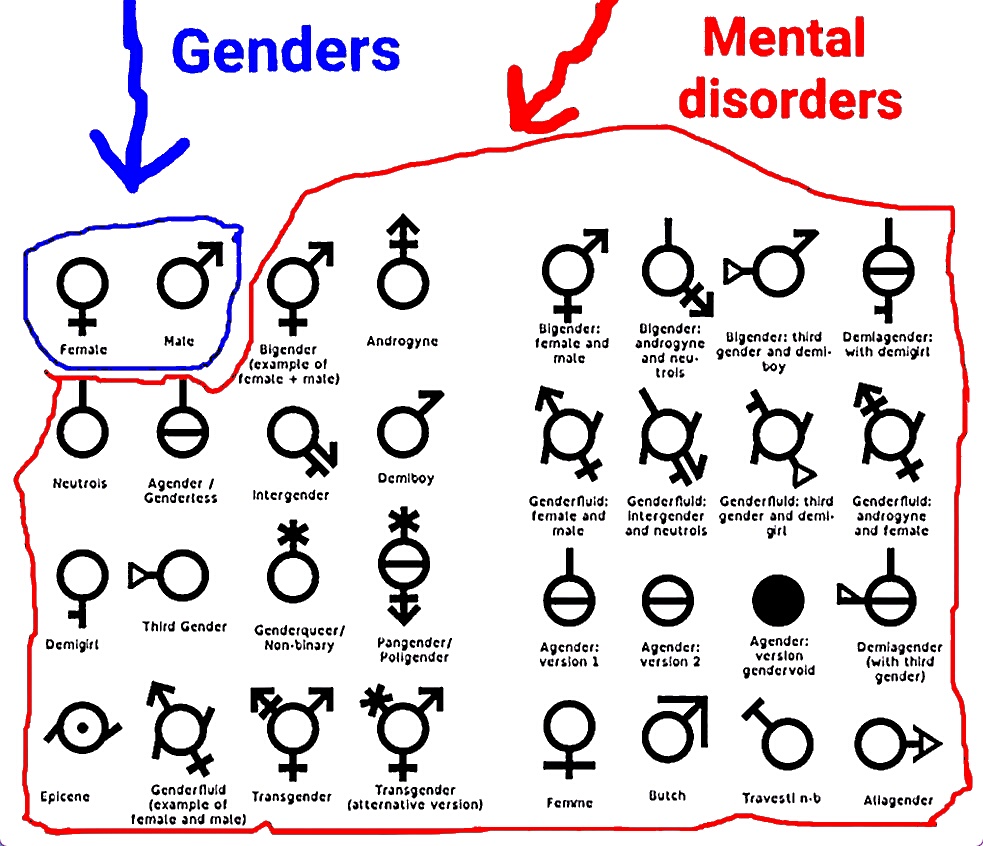

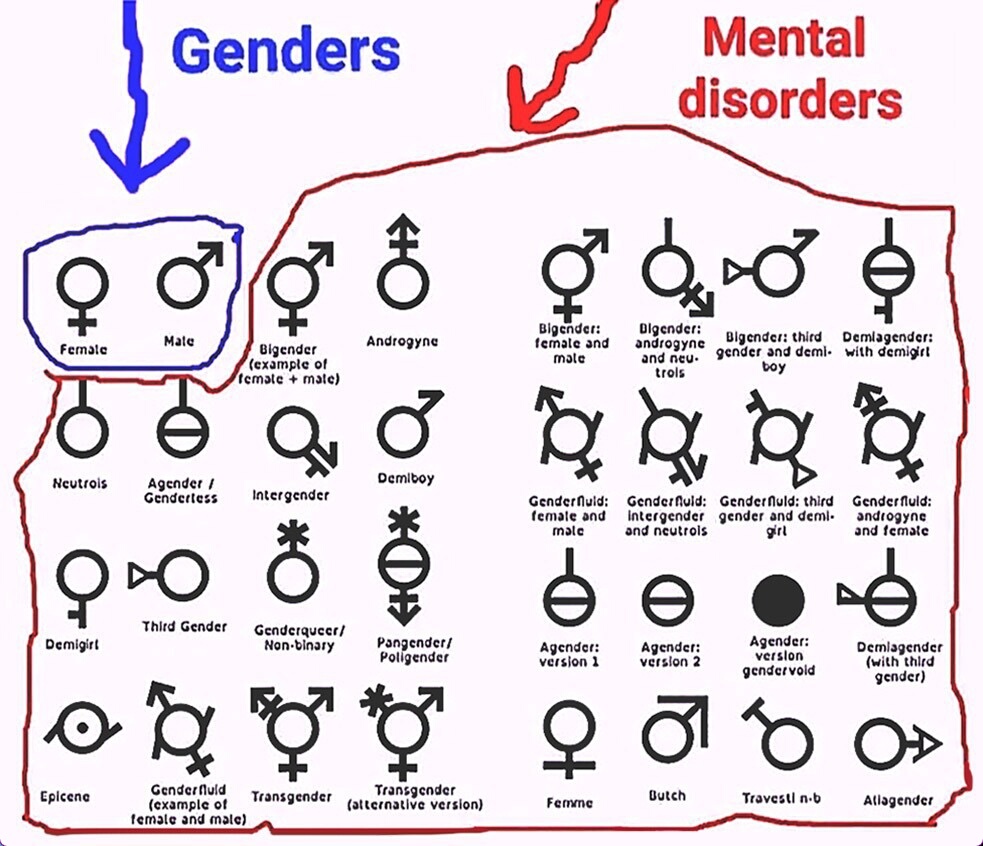

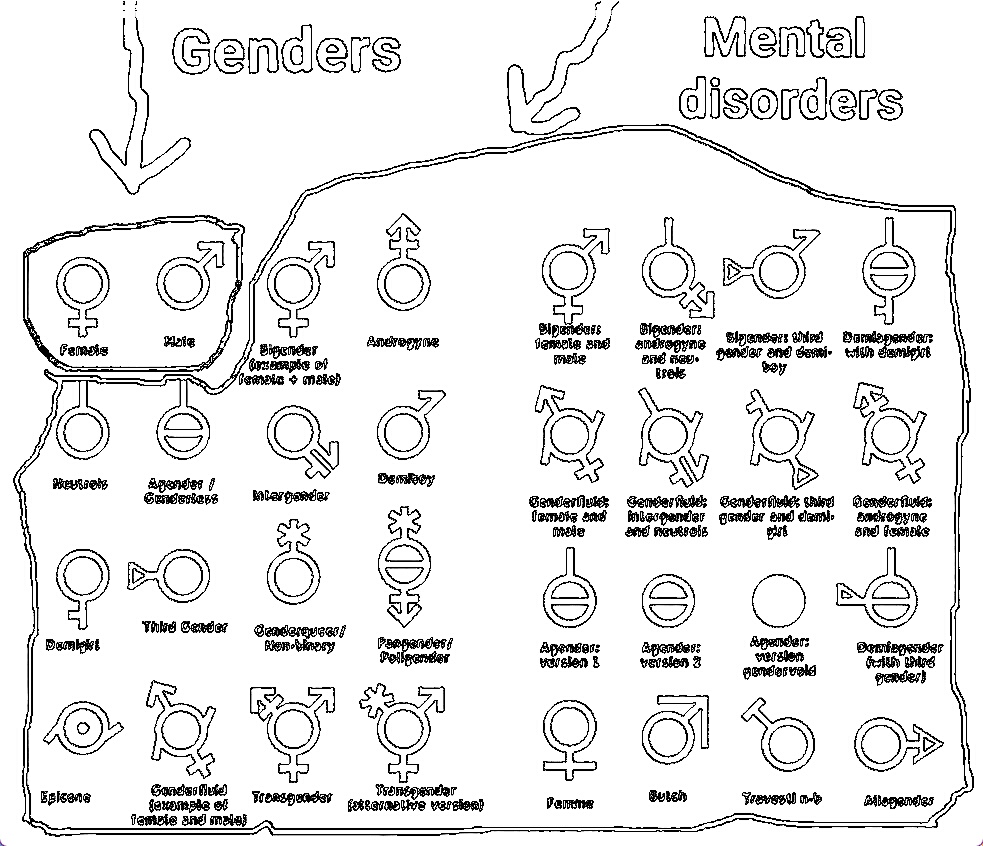

Original Picture with Artefacts First Cleanup - pure Colors Generate Outline to clean up Borders
Final Result

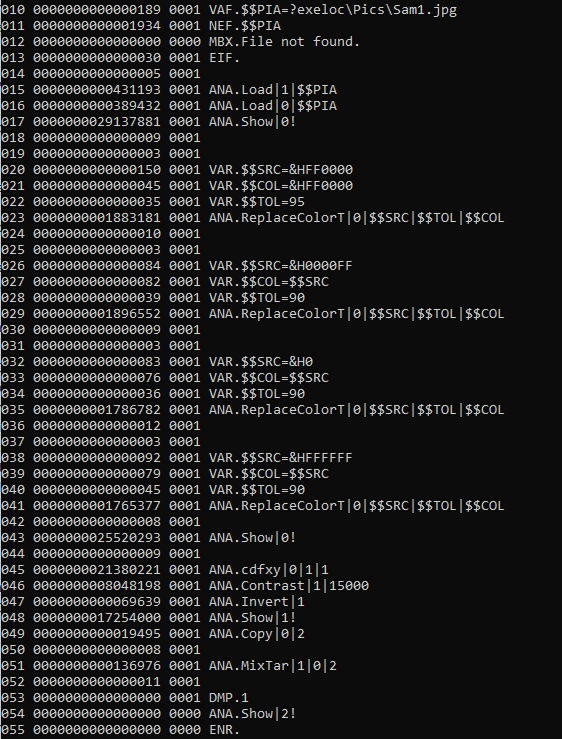

Here is the Speed-Dump of the Operation.
Here is the Speed-Dump for the Operation
This Script will split a Logo into its Color-Components.
'#EXE:?path\
'#SPI:ForceWrite
NEF.$$PIA
MBX.File not found.
EIF.
VAF.$$PIB=?exeloc\KAIF_Separate_
' Goldene Farbton
VAR.$$C01=&HB99534
' Rosa
VAR.$$C02=&HE5006D
' Weiss
VAR.$$C03=&HFFFFFF
' Schwarz
VAR.$$C04=&H0
' Default Background GRÜN
VAR.$$BGC=&H00FF00
' Load Source
VAN.$$BMA=1
ANA.Load|$$BMA|$$PIA
ANA.GetRes|$$BMA|$$XSZ|$$YSZ
'ANA.Show|$$BMA!
' Generate P2 für Gold
VAN.$$BMB=2
ANA.Copy|$$BMA|$$BMB
' Generate P3 für Rosa
VAN.$$BMC=3
ANA.Copy|$$BMA|$$BMC
' Generate P4 für Weiss
VAN.$$BMD=4
ANA.Copy|$$BMA|$$BMD
' Generate P5 für Schwarz
VAN.$$BME=5
ANA.Copy|$$BMA|$$BME
VAN.$$TOL=4
' Alles ausser Gold ersetzen durch Grün
ANA.ReplaceColorT|$$BMB|!$$C01|$$TOL|$$BGC
ANA.Show|$$BMB!
' Alles ausser Rosa ersetzen durch Grün
ANA.ReplaceColorT|$$BMC|!$$C02|$$TOL|$$BGC
' Alles ausser Weiss ersetzen durch Grün
ANA.ReplaceColorT|$$BMD|!$$C03|$$TOL|$$BGC
' Alles ausser Schwarz ersetzen durch Grün
ANA.ReplaceColorT|$$BME|!$$C04|$$TOL|$$BGC
VAN.$$TMB=#dsince#
DBP.$$TMB used
ANA.Show|$$BMB!
ANA.Show|$$BMC!
ANA.Show|$$BMD!
ANA.Show|$$BME!
FOR.$$SAV|2|5
ANA.Save|$$SAV|$$NAM
NEX.
MBX.Done!
ENR.
