MiniRobotLanguage (MRL)
PIS.SetButtonText Command
Set/Change Text on Plugin-Buttons
Intention
The PIS.SetButtonText -Command will set or change the Text that is displayed on a Button from the specified Buttonbar.
Syntax
PIS.P1|SetButtonText|P2|P3
PIS.P1|sBt|P2|P3
Parameter Explanation
P1 - Variable which contains the PlugIn Index-No.
P2 - Button Number, starting with "1"
P3 - Text that should appear on the Button
All commands are specific for the type of PlugIn used.

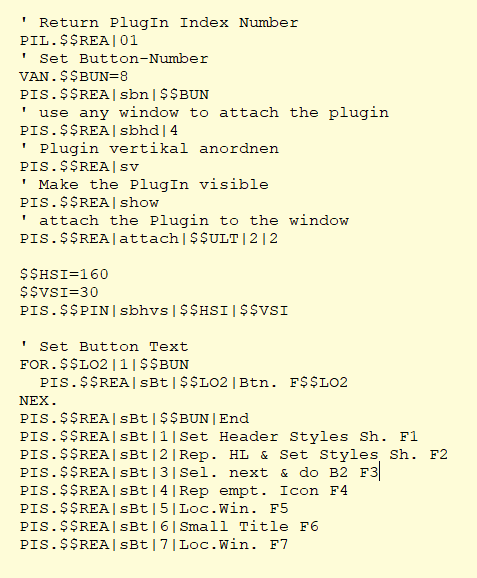

PIS.$$REA|sBt|$$BUN|End

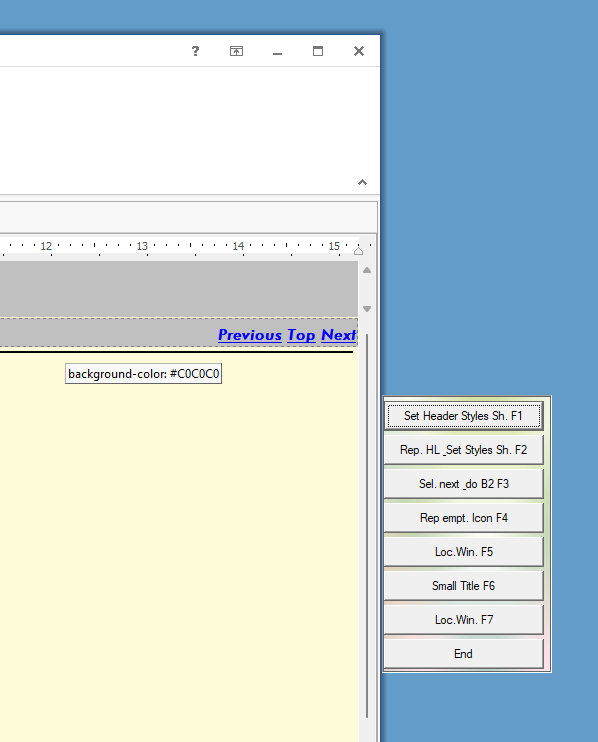

PIS.$$REA|sBt|1|Set Header Styles Sh. F1
Example
'*********************************
' Vertical Plugin-Sample
'*********************************
EXO.iexplore
PIL.$$REA|01
' use any window to attach the plugin
STW.t|explorer
' Store the window handle in a variable
HTV.$$ULT
PIS.$$REA|sbhd|4
' Plugin vertikal anordnen
PIS.$$REA|sv
' Make the PlugIn visible
PIS.$$REA|show
' attach the Plugin to the window
PIS.$$REA|attach|$$ULT|0|0
' Set text on Button 1
FOR.$$CNT|1|20
PIS.$$REA|sBt|$$CNT|Btn.$$CNT
NEX.
' Show a picture on Button 2
'PIS.$$REA|sp|2|$$PIC
' Set Distance between buttons (vertical in Points)
PIS.$$REA|sbvd|4
PIS.$$REA|sbn|1
' This double Loop will Show more or less buttons
FOR.$$LOA|1|2
FOR.$$LOP|1|20
PRT.->$$LOP
PIS.$$REA|sbn|$$LOP
PAU..2
NEX.
NEX.
PAU.2
:enz
END.
Remarks
You can use up to 5 Plugins at the same time.
Just start them, each will get another Index.
To communicate with each PlugIn, you just give the PlugIn-Index to each command.
Button-Colors and transparency:
Please note that if you set Buttons transparent, that they can not have a background-color at the same time.
To set multiple Buttontext at once you can use:
PIS.$$PIN|sbt|all|Button %n
The "%n" is replaced with the number of that button.
The "all" and %n-scheme will also work with most other commands, where it makes sense.
Limitations:-
-
