MiniRobotLanguage (MRL)
Show Text
Show Textual Information to user
Intention
This command is used to display textual Information. You can influence where the Bubble is displayed as well as the Text-Size and Colors.

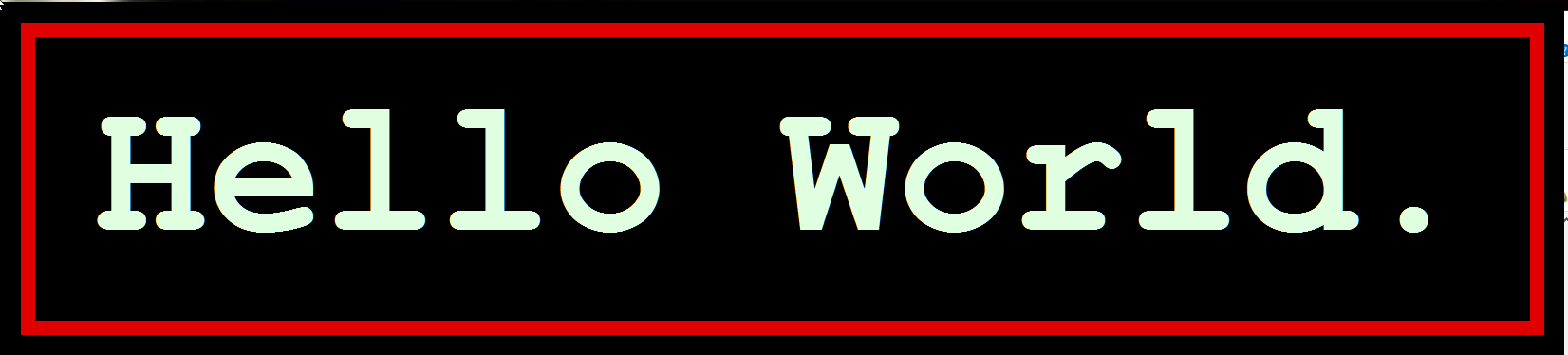

The following Script will display a "Hello World" on the upper right side of your screen. This way you can easily message something to your users.
' Let's start simple
SHT.Hello World.
PAU.8
ENR.
Why do we need the "PAU.8" ?
It's needed because the Command - per default runs in the Background. It starts to display the Text, and WHILE the text is displayed the Script continues to run.
Now, if the Script ends - the Bubble will also be closed!
To prevent this you can add a second Parameter:
' Let's start simple
SHT.Hello World.|#
ENR.
This will make the Script wait until the message goes away. The default time for the message to disappear is 6 Seconds.
How can we change that? We add another Parameter:
SHT.Hello World.|# T:12
ENR.
Now the Text will disappear after 12 Seconds. What else can we change?
We can change: Colors, Text-Size and Font and Boldness and also the Position.
To do this, the Parameters as shown below can be given.

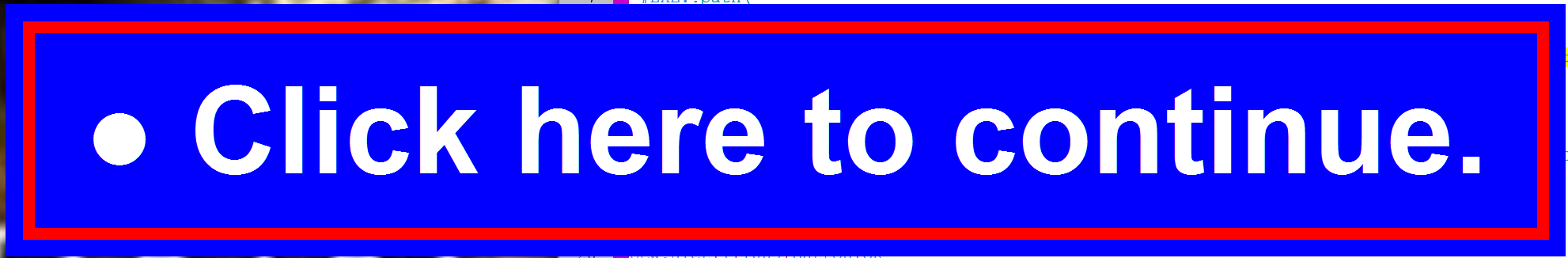

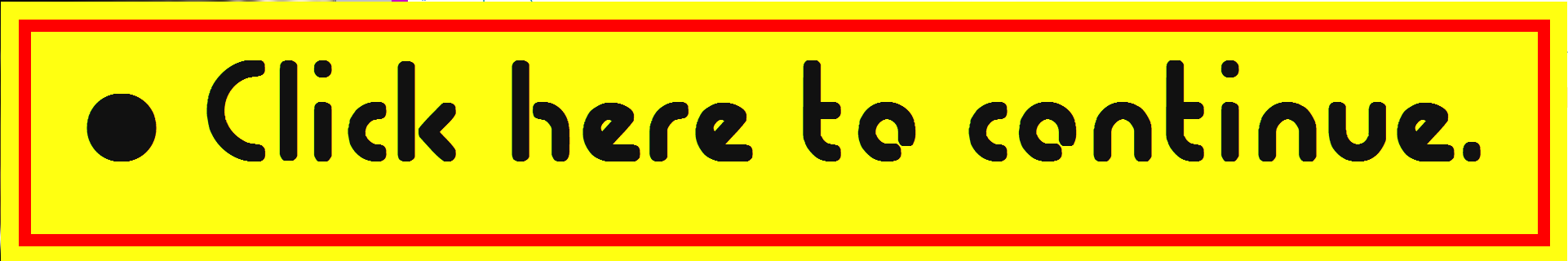

SHT.Click here to continue.|DOT: t: 5 BF:4 fs:115 fn:"Tomorrow People" cs:1 # bc:"111111" tc:"FFFFFF" lc:"0000FF"
SHT.Click here to continue.|DOT: t: 5 BF:4 fs:115 fn:"Tomorrow People" cs:1 bc:"11FFFF" tc:"111111" lc:"0000FF"
PAU.10
ENR.

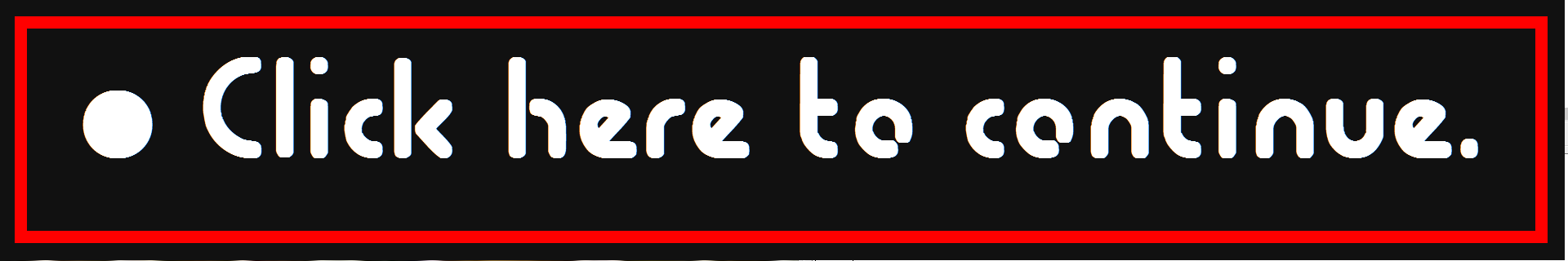

Using other colors and custom fonts will produce this result. Notice the "Dot" on the left side?
It's from the "DOT:" Parameter.

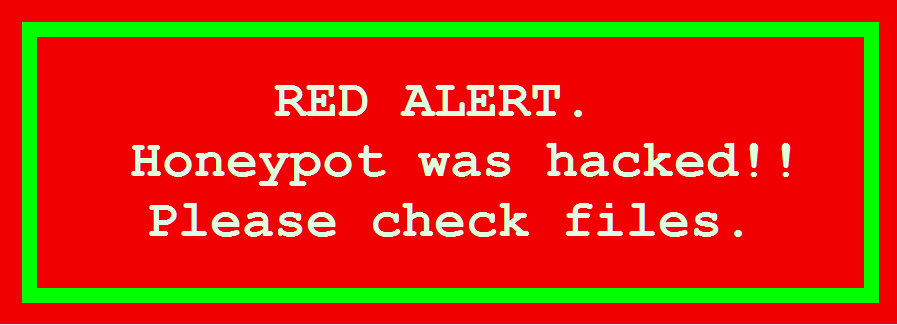

' More compelx Sample
$$TXT=RED ALERT. $crlf$ Honeypot was hacked!!$crlf$Please check files.
FOR.$$CNT|1|5
DIT.#
$$PAR=FS:40 t:1 cs:1 bc:"0000F0"# lc:"00FF00"
SHT.$$TXT|$$PAR
DIT.2
NEX.
PAU.2
ENR.
Syntax
SHT.P1[|P2][#]
Parameter Explanation
P1 - Text to be displayed
This can be a Text or a Text-Variable that will be displayed in the Bubble-Text.
It may contain $crlf$ - these will be treated as NewLine".
P2 - (optional) Flags and Parameters
# - will have the Script wait until the Bubble-time is over.
T:(NUM) - Time in Seconds, specify how long the Bubble-Text shall be displayed. The Bubble will anyway be closed when the Script ends! If not given the default time is 6 Seconds.
FS:(NUM) - FontSize: An number that specifies the size of the Font that shall be used.
FN:"FONTNAME" - Specify any Font that is on your Computer. Notice that the Fontname must be between " ".
VC: - Vertical Center. This will Center the Text vertically.
HC: - Horizontal Center. This will Center the Text horizontally.
AX:(NUM) - Adjusting X-Position. This value can be negative or positive. It will move the Text by this number of pixels left (if negative value) or right.
AY:(NUM)- Adjusting Y-Position. This value can be negative or positive. It will move the Text by this number of pixels up (if negative value) or down.
MP: - Mouse Position. If specified then the Text will be generated at the Position where the Mouse Pointer is.
CS: - Center on Screen. This will Center the Text on Screen.
BF:(NUM) - Bold-Faktor, Number 0-9. The higher the number - the bolder the Text.
DOT:1 - Will Paint an DOT at the left of the Text.
BC: - Background-Color for Text must be in Hexadezimal and in "". Format is: BBGGRR
Example: BC:"000000"
LC: - Line-Color for Surrounding Box must be in Hexadezimal and in "". Format is: BBGGRR
Example: LC:"0000FF"
TC: - Text-Color for Text must be in Hexadezimal and in "". Format is: BBGGRR
Example: TC:"FFFFFF"
Example
'***********************************************
' SBT. - Sample
'***********************************************
SHT.Click here to continue.|DOT: t: 5 BF:4 fs:115 fn:"FUTURA BOLD" HC:1 VC:1 # bc:"FF0001" tc:"FFFFFF" lc:"0000FF"
ENR.
'***********************************************
'***********************************************

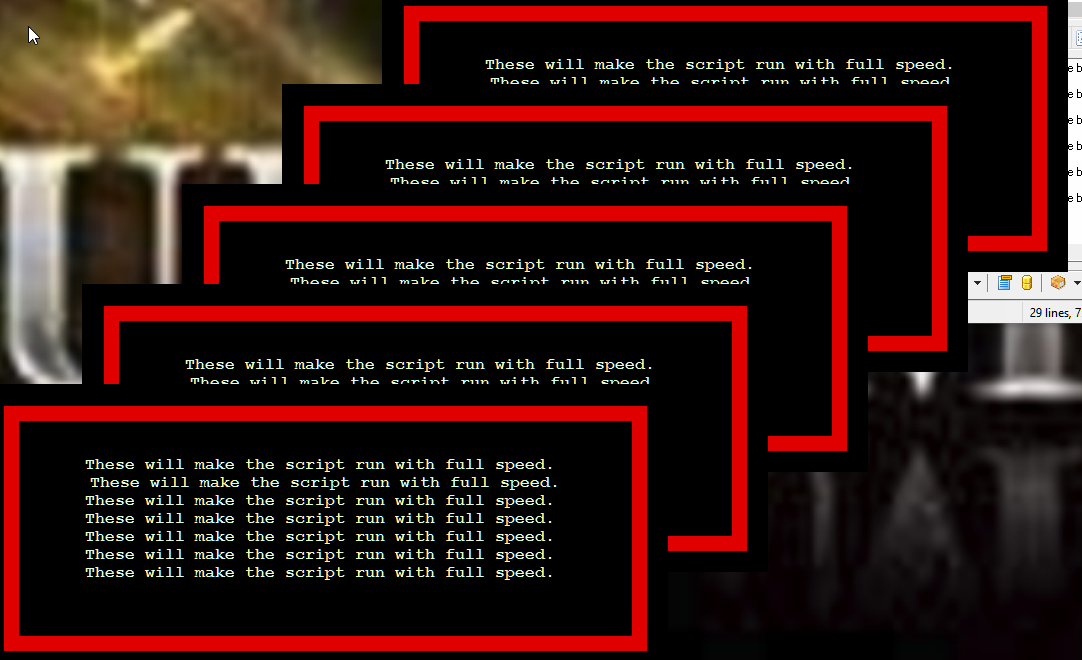

' More complex Sample
$$TXT=These will make the script run with full speed. $crlf$
$$TXT=$$TXT $$TXT$$TXT$$TXT$$TXT$$TXT$$TXT
FOR.$$CNT|1|5
CAL.$$XPO=(-100*$$CNT)
CAL.$$YPO=100*$$CNT
$$PAR=FS:12 t:10 cs:1 ax:$$XPO ay:$$YPO
SHT.$$TXT|$$PAR
NEX.
PAU.2
ENR.
Remarks
-
Limitations:
-
See also:
• DMP. - Dump internat Informations
