MiniRobotLanguage (MRL)
XML.Goto End Tag
XML.GEnd
Goto nearest End-Tag
Intention
This command will set actual position to the nearest </xxx > End-Tag. It will jump over Tags that are self terminated.
The found End-Tag is just the "<" open bracket od the nearest End-Tag that is nearest to the current position.
Usage:
XML.GEnd|$$END
or
' We give the starting Position, that should be corrected to
' the start-position of the nearest End-Tag.
VAR.$$STA=199
XML.GEnd|$$END|$$STA
Hint:
If you need the End-Tag of your current Tag, use
XML.gbl|$$STA|$$END
instead. You will have the End-Tag Position in $$END.
Syntax
XML.Goto End Tag[|P2][|P3]
Parameter Explanation
P2 - (optional) Variable to return the result. The result is 0 in case of parsing errors.
Otherwise the result is >0 and contains the position of the End-Tag of our
current positions start-tag.
P3 - (optional) Numeric value that is taken as the start-tag position.
If omitted, current position is used.
Example
'***********************************
'
'***********************************
'Prototype für IML.
$$PRO=Open Bracket
$$TXT=a real Open Bracket
$$XMF=?pfad\SQ_XML.txt
NEF.$$XMF
MBX.File $$XMF was not found!
GTO.enx
EIF.
' Now we are going to parse it
XML.Load File|$$XMF
' We check if there are errors
JIT.Lab_Err
' We get the "actual position" - after parsing.
XML.get pos|$$POS
PRT.Actual Position after Parsing is: $$POS
' Hier gehts los
PRT.------------------------
XML.sdn|&EXACT:Patch
XML.get pos|$$POS
PRT.Actual Position is: $$POS
XML.gend|$$BSE
PRT.Current Block starts at: $$POS
PRT.Current Block ends at: $$BSE
XML.gxp|$$POS|$$BSE|$$BLO
PRT.------------------------
PRT. This is the Block:
PRT.$$BLO
PRT.------------------------
PRT. We Dump Positions
XML.Dump|($$POS-3)|($$POS+3)
PRT.------------------------
XML.Dump|($$BSE-3)|($$BSE+3)
MBX.!
:enx
ENR.
'-----------------------------------------------------------
' Error Handler
:Lab_Err
XML.get error|$$ERT
DBP.$$ERT
ENR.
ENR.

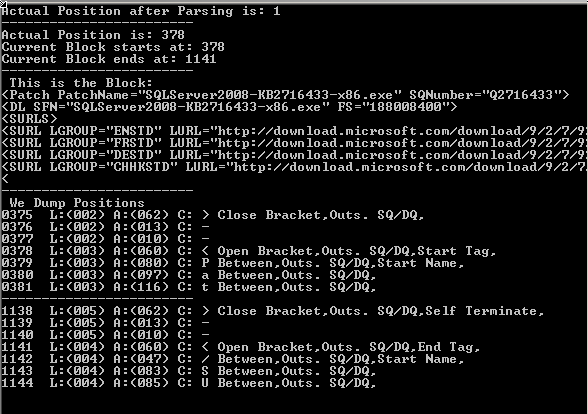

This is the result of the sample script:
Remarks
-
Limitations:
-
See also:
• ! Smart Package Robot 's XML-Features
• XML. - eXtended Markup Language
