Checkmark Control
Selecting Options.
The checkmark control is often used to have the user to confirm something.
Understanding the Checkmark Control
Firstly, let's take a look at a "Checkmark Control". Here's an example:

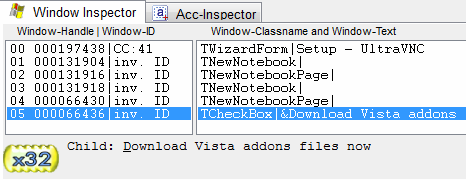

The windows-inspector for this control might appear as follows:
The presence of "check" in the class-name "TCheckbox" is a strong indicator that we're dealing with a genuine checkmark.
Typically, checkmarks have two states: checked and unchecked.
It's important to note that Checkmark Controls differ from Radio Button Controls in that they operate independently of each other. Checking one will not alter the state of another checkmark within the same dialog.
To uncheck the checkmark above, you would use the following script:
' Get the application Setup-window
STW.ct|TWizardForm|Setup - UltraVNC
' Locate the checkmark-child window
SCW.ct|TCheckBox|Download Vista
' Set the checkmark to unchecked
BTC.0
' End the script.
ENR.
Interacting with the Checkmark Control
Ideally, with the SPR, we don't merely click on a checkmark with the mouse.
Instead, we use the dedicated BTC command, accompanied by a parameter (0 or 1) that indicates the desired state of the checkmark.
This approach offers an advantage: it makes us independent of the checkmark's previous state.
Regardless of whether the checkmark was checked or unchecked, the BTC command will attempt to achieve the state we want.

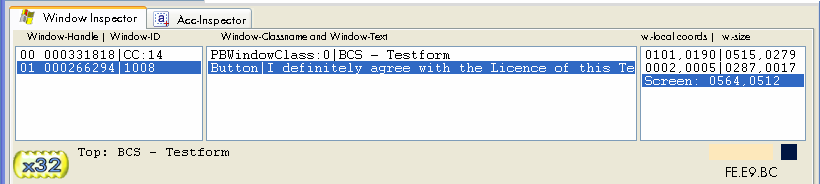

The windows inspector displays a checkmark as follows:
Window Class Variations for Checkmark Controls
The window class for a checkmark might be labeled as "button", or it could contain "check" in the name. However, this isn't always the case. The window class could bear different names as well. Given that window classes can be named at the programmer's discretion, the window class for a checkmark control can vary.
Normally you can change the value of an checkmark using the BTC.-command.
' BTC.-Sample
STW.ct|PBWindowClass:0|BCS - Testform
SCW.nct|1|Button|I definitely agree with the License of this Testform.
BTC.1
There may be checkmark controls out there, that do not react on the BTC. - Button-Check-command as we would expect it.
In that case use the normal mouse clicks to change their state.
Understanding Treeview Controls with Built-In Checkmarks
Consider the treeview control shown below. It appears to have built-in checkmarks. The windows-inspector identifies it as "systreeview32". However, it's important to note that these are not actual checkmarks, and as such, the BTC command cannot be used with them!
As the window-class shows, this is a treeview. And we need to use the treeview commands for it.
This is not a checkmark control. It is a "Treeview-Checkmark". The windows-inspector will show it as a treeview "systreeview32".
In this case you need to use the TVI.- or the TVF. - Tree View Find.-command with its options to check and uncheck the boxes.
There are other checkmarks out there which are also not true checkmarks. For example this one:
Understanding Listbox Controls with Checkmarks
The elements you see are not actual checkmark controls. Instead, they are part of a Listbox that includes checkmarks. To check or uncheck these Listbox Checkmarks, you'll need to use the LBE command along with its options.

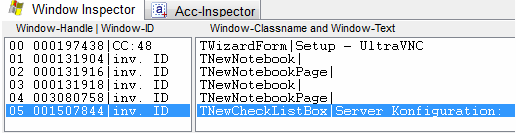

The windows-inspector, as shown below, identifies it as a Listbox, specifically "TNewCheckListBox".
To check the first checkmark in this case, you would use the following code:
STW.HBJwct|45|TWizardForm|Setup - UltraVNC
SCW.wctd|45|TNewCheckListBox|Server Konfiguration:|5
' This will check the Listbox-Checkmark
LBE.UltraVNC Server als System-Dienst ®istrieren||1
In some cases, when the Listbox-commands do not work, you can often still locate the Listbox using the SAO. command. And then just click it with the mouse using MLI - Mouse Left Click quIckly (Invinsible) , or use the MOS. - Mouseless Object Select-command.
See also:
These are the most used commands for checkmarks:
• MLI - Mouse Left Click quIckly (Invinsible)
• MLM - Mouse Left click Move (Invinsible)
• SAO. - Search Accessible Object
• MOS. - Mouseless Object Select
