MiniRobotLanguage (MRL)
GCI. Command
Get Combo Item
Intention
The GCI.-Command can be used to return the Combo-Box-Items.
Here is a Picture of a Combobox with item Nr.4 selected.
It is important, that you first locate a Combobox. To do this, You can use SCW. as well as SAO..
In our Test-Application this would look like:
STW.ct|PBWindowClass:0|TestApp
SCW.nc|3|ComboBox
Once this is done, the computer knows which Combobox you want to analyze. So we can start using GCI. The simplest way of operation is, if you just write:
GCI.

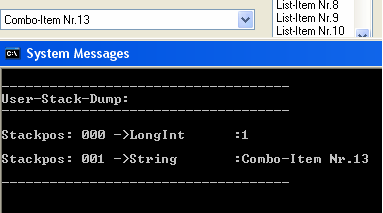

In this case you will find the actual selected Combo-Item (see below) on the TOS:
The TOS contains the 1-based Index number of the actual selected item. Below the TOS is the text of the selected Combo-Item.
The GCI.-command has multiple Modes of operation. To switch between them, the command knows a number of prototypes, see below.
Lets start with the c - prototype. c like count. Using this prototype you can simply find out how many items the Combobox has.
There are two modes of operation using this prototype:

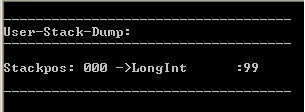

'This will just place the number of Combo-Items on the TOS.
GCI.c
' This will store the result in the given variable instead on TOS.
GCI.c|$$NUM
As you can see the only difference is, that the result is once on the Stack, and once in a given variable. This will be the same with most of the following operation modes.
Using the s - like selected prototype, you can find out which Combo-Item is currently selected. As the returned index is 1 - based, a return value of zero means that currently there is no Item selected. The modes of operation for the "s"-prototype are:
GCI.
GCI.s
GCI.s|$$TXT
GCI.s||$$NUM
GCI.s|$$TXT|$$NUM
The only difference is, which result is been placed on the TOS and which is placed inside variables. $$TXT hereby is the Text of the selected Combo-Item, while $$NUM is the 1-based Index of it.
Using the t - like text prototype, you can get the Text of an Combo-Item from an 1-based Item-Index. The details from where the numeric index is taken, and where the result is been place, are straightforward.
' Take number from TOS, place result on TOS
GCI.t
' Take number from $$NUM, place result on TOS
GCI.t|$$NUM
' Take number from $$NUM, place result in $$TXT
GCI.t|$$NUM|$$TXT
Using the n - like numeric prototype, you can find out the numeric, 1-based Index of an Combo-Item. The string you specify can contain 3.2 Standard-Search Pattern.
' Will get the search string from TOS, and place result on TOS
GCI.n
' Search string from $$TXT, result on TOS
GCI.n|$$TXT
' Search string from $$TXT, choose result number $$NUM
' place result on TOS
GCI.n|$$TXT|$$NUM ' resultat number in $$NUM
' Search string from $$TXT, choose result number $$NUM
' place result in variable $$RES
GCI.n|$$TXT|$$NUM|$$RES
Using the f - like find prototype, you can find a Combo-Item using 3.2 Standard-Search Pattern.
' Will get the search string from TOS, and place result on TOS
GCI.f
' Search string from $$TXT, result on TOS
GCN.f|$$TXT
' Search string from $$TXT, choose result number $$NUM
' place result on TOS
GCN.f|$$TXT|$$NUM
' Search string from $$TXT, choose result number $$NUM
' place result in variable $$RES
GCN.f|$$TXT|$$NUM|$$RES
Using the a - like all prototype, you can
' Concatenates all Combo-Items using $crlf$ as delimiter.
' Result is been placed on TOS.
GCI.a
' Concatenates all Combo-Items using $$DEM as delimiter.
' Result is been placed on TOS.
GCI.a|$$DEM
' Concatenates all Combo-Items using $$DEM as delimiter.
' Result is been placed in $$RES
GCI.a|$$SDEM|$$RES
If the delimiter expression is a null (zero-length) string, no separators are inserted between the string sections.
If the delimiter expression is the following 3-byte value of "," a leading and trailing double-quote is added to each string section.
Syntax
GCI.[P1][|P2][|P3]
Parameter Explanation
The details of the parameter depend on the used prototype.
P1 - (optional) prototype, selects the kind of operation, if omitted "s" is used. The following prototypes are supported:
c - count Combo-items
s - selected Combo-Item (get selected)
t - text of Combo Item
n - numeric, get 1-based Index of Combo-Item
f - find, find a Combo-Item based on a Text using Patterns
a - all, fill a variable with all Combo-Items, possibly with a
delimiter of your choice.
P2 - (optional) VAR to store results, STRING or number.
P3 - (optional) VAR to store results.
P4 - (optional) VAR to store results.
Example
'*************************************************
' GCI- Sample #1
' Get actual selected Item
'*************************************************
'
' This first line will just test if the TestApp is already
' running and must not be started.
STW.Xwtg|0|TestApp|over
' We start the TestApp
EXE.?exepath\Sample Apps\TestApp_01.exe
' We can locate it directly with the PID
STW.p|#pid#
:over
' Select Combo-Box
SCW.i|1027
' Will return the actual selected Item on TOS
GCI.
' Lets see the TOS
STS.DUMP
MBX.Ready
ENR.
'*************************************************
' GCI- Sample #2
' Get all Combo-Items in a List
'*************************************************
'
' This first line will just test if the TestApp is already
' running and must not be started.
STW.Xwtg|0|TestApp|over
' We start the TestApp
EXE.?exepath\Sample Apps\TestApp_01.exe
' We can locate it directly with the PID
STW.p|#pid#
:over
' Locate the Combobox by ID
SCW.i|1027
' Get all Combo-Item delimited by newlines
GCI.a
STS.DUMP
MBX.Ready $$TXT
ENR.
'*************************************************
' GCI- Sample #3
' Get all Combo-Items in a delimited List
'*************************************************
'
' This first line will just test if the TestApp is already
' running and must not be started.
STW.Xwtg|0|TestApp|over
' We start the TestApp
EXE.?exepath\Sample Apps\TestApp_01.exe
' We can locate it directly with the PID
STW.p|#pid#
:over
' Locate the Combobox by ID
SCW.i|1027
' Get all Combo-Item delimited by newlines
GCI.a|"."|$$TXT
' Complete the result with leading and trailing "
VAR.$$FIN="$$TXT"
MBX.$$FIN
ENR.
'*************************************************
' GCI- Sample #4
' Get Combo-Item No.12
'*************************************************
'
' This first line will just test if the TestApp is already
' running and must not be started.
STW.Xwtg|0|TestApp|over
' We start the TestApp
EXE.?exepath\Sample Apps\TestApp_01.exe
' We can locate it directly with the PID
STW.p|#pid#
:over
' Locate the Combobox by ID
SCW.i|1027
' Get Combo-Item No.12
GCI.t|12|$$TXT
MBX.$$TXT
ENR.
'*************************************************
' GCI- Sample #5
' Ermittelt 1 - basierten Index des aktuell
' selektierten Elementes
'*************************************************
'
' This first line will just test if the TestApp is already
' running and must not be started.
STW.Xwtg|0|TestApp|over
' We start the TestApp
EXE.?exepath\Sample Apps\TestApp_01.exe
' We can locate it directly with the PID
STW.p|#pid#
:over
' Locate the Combobox by ID
SCW.i|1027
' Get Combo-Item No.12
GCI.s||$$TXT
MBX.$$TXT
ENR.
Remarks
-
Limitations:
There may be non-Standard Comboboxes out there, where this command may not work as expected. If that happens, its not a bug, its just that the developer of that Application made his Combobox too far away from Common-Control-Standards. Please note that this command does generally not support Comboboxes in Browser- or Java-Applications.
Also this command may currently not work with all x64 applications.
See also:
• RST. - Replace Selected Text
